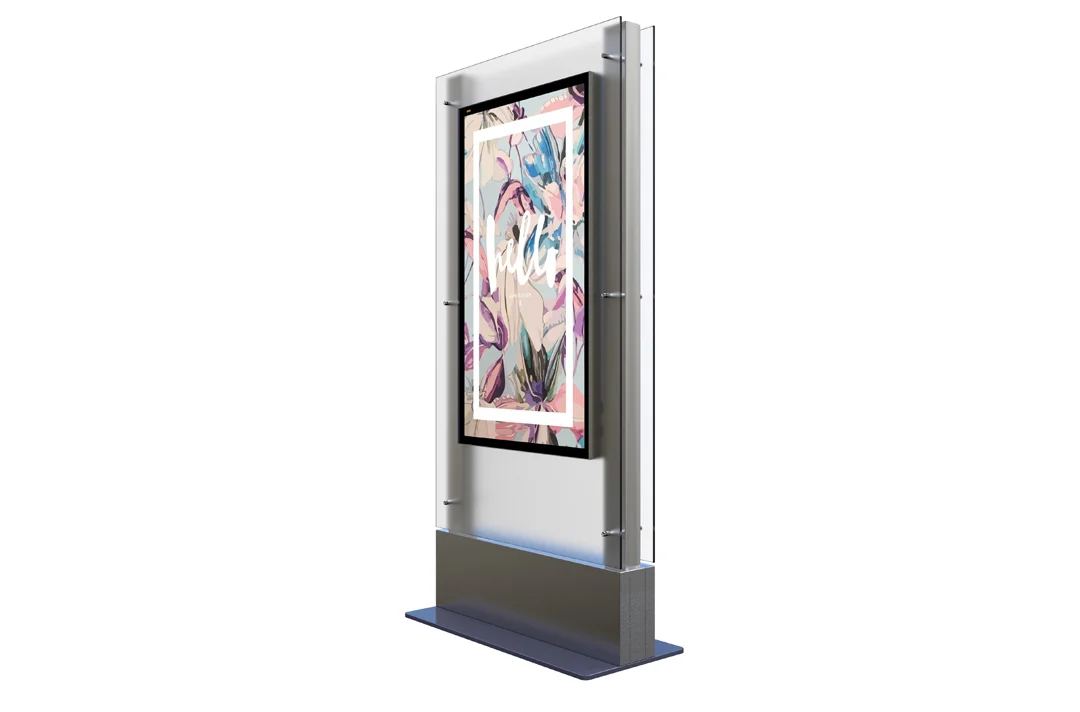

Redefining the Commercial LCD Displays.

There are no better protected displays than our IP 66 high brightness displays.
With an entirely enclosed design, the IP 66 high brightness display is the answer
to any commercial display  need in a non-forgiving environment.

2500 nits BRIGHTNESS.

Full HD Display.

IP 66.

Available sizes: 55"

Available colors: Sliver


TECH SPECS

PANEL

Resolution : 1920 X 1080

Brightness (nits) : 2500

Contrast : 4000:1

Backlight : Vertical LED light source

Refresh Rate (ms): 6.5

Viewing angle  : 178° /  178°

Service Life (hours) : 50,000



FUNCTIONAL CHARACTERISTICS

Video Input : USB×1 , SD×1 , HDMI x 1

USB, SD Supports Video Formats : support extended .avi , mpg , dat, rm / rmbv, wmv

USB, SD Supports Audio Formats : support extended .mp3wma, m4a /aac

USB, SD supports Image Formats : support extend .jpg / jpeg , .bmp , .png

Audio Output (w) : 2 x 5

Timing on-off : Free-set multi-period time

Abnormal Voltage Protection : Provide detection for internal voltage. It’ll self-closing for protection once it deviates from the standard value range.

Intelligent temperature control system : Intelligent temperature control function can automatically control the working situation of cooling fan according to environment, to ensure that products can work in environment of high temperature.



POWER SUPPLY

Standby Power Consumption (w) : 2

Shutoff Power Consumption (w): 0.5

Intelligent Optical Sensor : With automatic function of light sensing. Self-regulation of screen brightness according to the light intensity of environment.

Outdoor Grade : IP 66, sunlight readable , no blacking

Max Power Consumption(w) : 420 (55")



PHYSICAL SPECIFICATIONS

Texture of Material : The outer of display is manufactured from galvanized steel sheets overlaid with low zinc powder and outdoor powder as surface treatment of protection, guaranteed 7 years no fade and no rust , the color of which can be customized.

Full Body Dimension(h x w x d , mm) :  2,100 x 1,000 x 200 (55")
