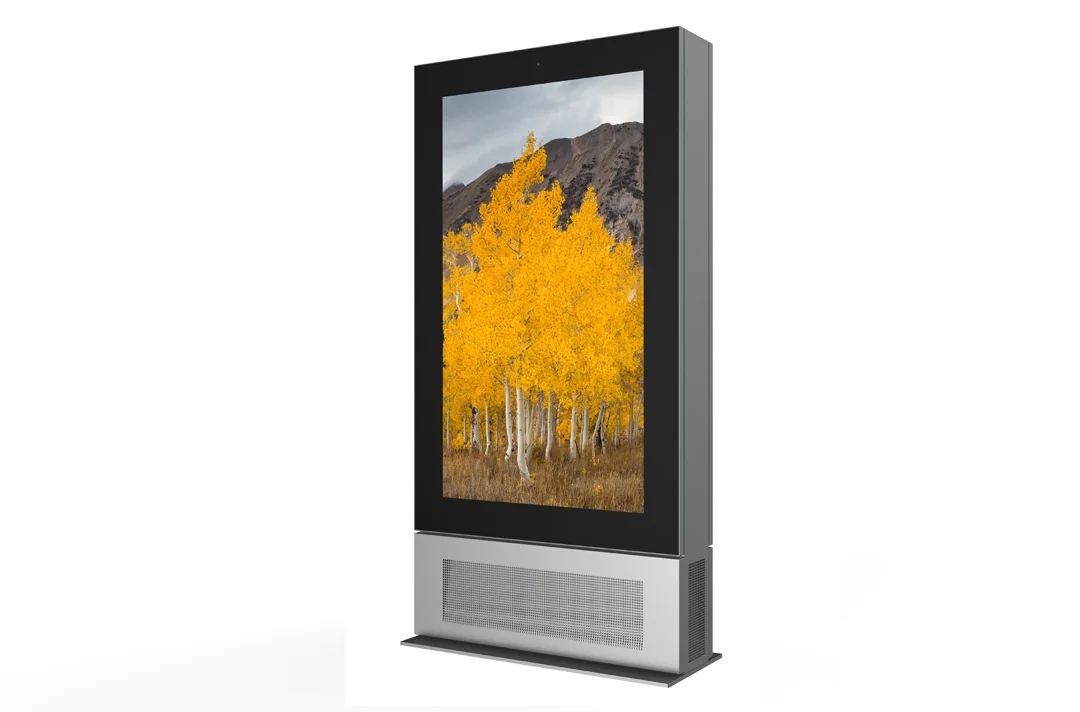

Liquid Cooled Double Sided High Brightness LCD Displays

Fully Enclosed System

IP Rating: IP 65

Dust Free

Moisture Free

Low Energy Consumption




TECH SPECS

Panel

75
LG / Samsung / AUO / SHARP
928 x 1650
1920 x 1080
16:9
2500
4000:1
5
178° / 178°
led backlight source
50000

Panel Size (inch)
LCD Manufacturer
Active Display Area (mm)
Resolution (pixel)
Aspect Ratio
Brightness (nits)
Contrast Ratio
Grey to Grey Response Time (ms)
Viewing Angle (H / V)
Backlight Configuration
Operational Life Cycle-mtbf (hours)



Media & Connectivity

SYSTEM
CPU
DDR
NAND
WIFI
LAN
RS 232
USB
Remote Server
4G / 3G
Auto Standy
Speaker

Android 4.4.4
RK 3188
1 G
8 G
Yes
Yes
Yes
Yes
Update content wireless through the web
Yes
Automated on/off timing by day,week,hour.
8 Ω 5 W x 2



Micro-Controller

Yes

Yes

Yes

Yes

Automatic Brightness

Auto Cooling

Auto Heating

Auto Dehumidification



Power

III

30 mA, 0.1 S

Automated on/ off timing by day, week, hour

AC 220 V / 110 V ± 10%, 50 / 60 HZ

3500 ( without heater ), 4100 (with heater)

Lighting Protection Grade

Leakage Protection

Timing Switch

Input Voltage

Max Power Consumption (w)



Enclosure

IP 65

Galvanized Steel + zinc powder coating + fine grain powder triple coating

5 years, fully outdoor, No color-fading, paint-shedding, rusting

Tempered glass with AR coating

Transmissivity > 93%, Reflectivity < 2%

1230 x 2400 x 350

150

TBD

IP Rating

Enclosure Material

Enclosure Lifetime

Glass Type

Glass Characteristics

Unit Dimension ( w x h x d mm)

Bezel Width (mm)

Weight (kg)



Environment

Operating Environment
Operating Temp.
Operating Humidity
Operating Altitude

Exposure to direct sunlight, rain, snow and dust
-20℃ ~ +50℃
5% ~ 98%
≤ 2000 m


Windows System

Touch Screen

Option
