OUR MOST VERSATILE UNIT.

HANG IT AGAINST A WALL OR JUST LET IT SIT.

DUE TO OUR ADVANCEMENTS IN COOLING TECHNOLOGY, WE ARE ABLE TO DEVELOP SUPER THIN DISPLAYS. OUR DISPLAYS ALSO HAVE AN ANTI-CORROSION PROTECTIVE LAYER THAT WILL LAST MORE THAN SEVEN TO TEN YEARS.

2500 nits BRIGHTNESS.

16 CM THICKNESS. 55" SCREEN.

iP 55.

Available Sizes: 43" 55"

Available Colors: White, Black

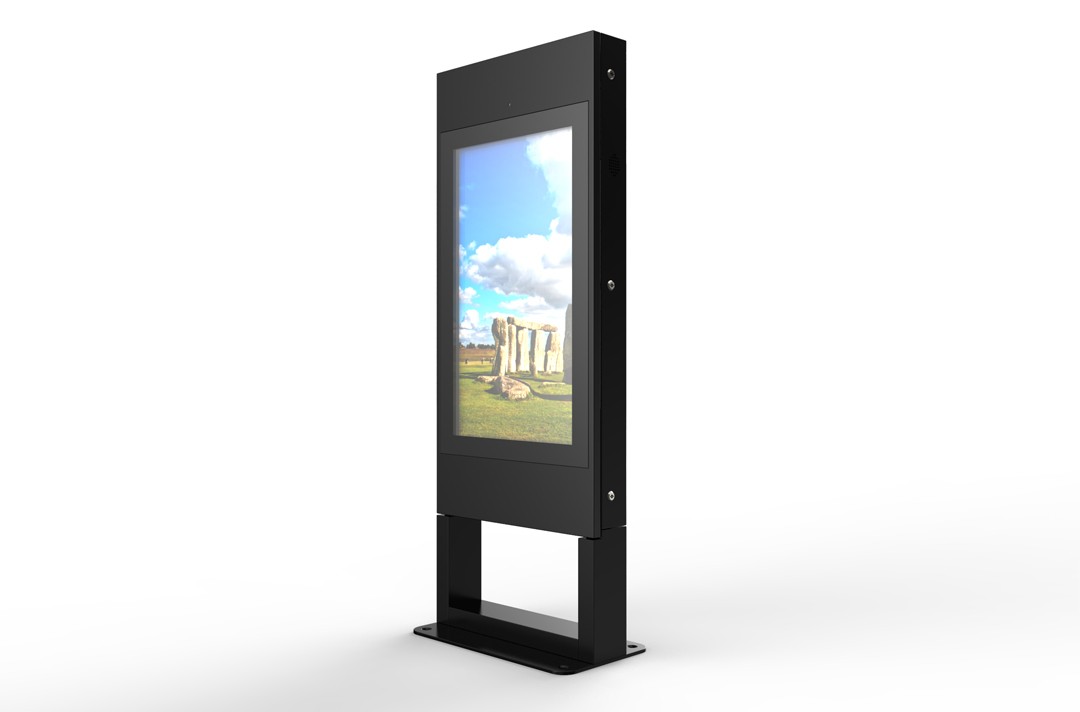

outdoor air cooled kiosk



        Ultra-thin Integrated Frame Design                        Outdoor LCD display maker Keewin is showcasing its ultra thin air-cooled outdoor displays,        which can be wall,ceiling or standalone mounted.This new line of products,with particular attention         paid       to brightness and heat dissipation,has been rolled out to public transport,        storefronts,hotels,    schools,parks,banks and more.

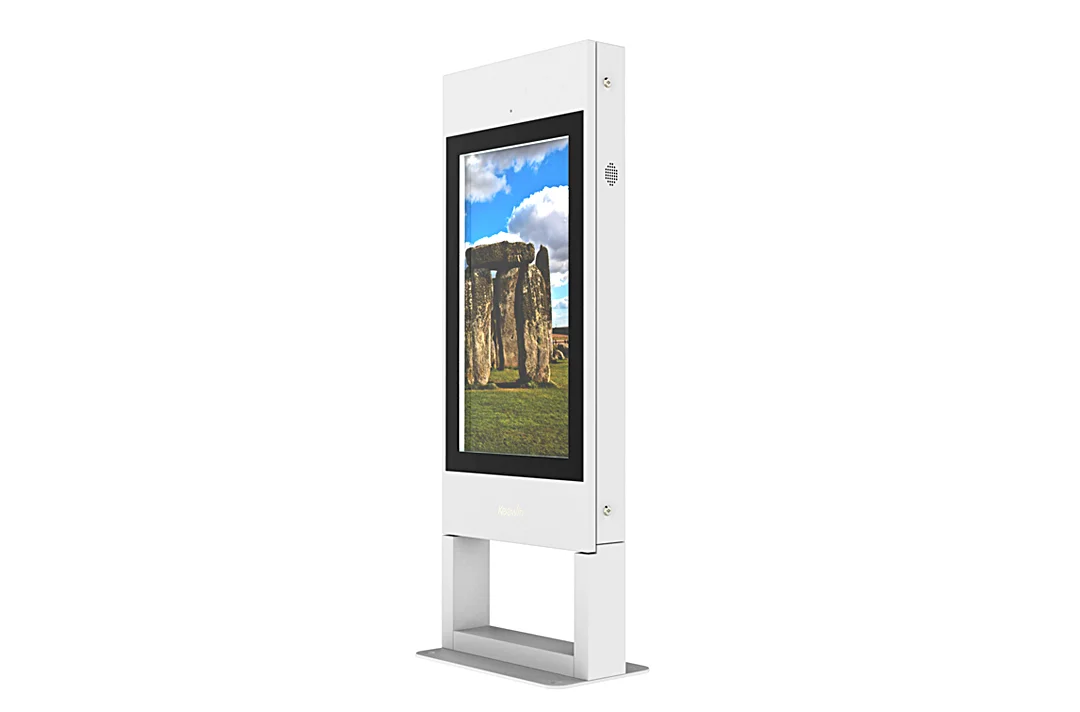

Ultra-thin Integrated Frame Design

            Outdoor LCD display maker Keewin is showcasing its ultra thin air-cooled outdoor displays,

which can be wall,ceiling or standalone mounted.This new line of products,with particular attention

paid to brightness and heat dissipation,has been rolled out to public transport,

storefronts,hotels,schools,parks,banks and more.





TECH SPECS

SEMI-OUTDOOR AIR COOLED KIOSK

PANEL

Resolution : 1920 X 1080

Brightness(nits) : 2500

Contrast : 4000:1

Backlight : vertical led light source

Refresh Rate (ms): 6.5

Viewing angle  : 178° /  178°

Service Life (hours) : 50,000



FUNCTIONAL CHARACTERISTICS

Video Input : USB × 1 , SD × 1 , HDMI x 1

USB, SD Supports Video Formats : support extended .avi , mpg , dat, rm / rmbv , wmv

USB, SD Supports Audio Formats : support extended .mp3 wma ,m4a /aac

USB, SD supports Image Formats : support extend .jpg / jpeg , bmp , png

Audio Output (w) : 2 x 5

Timing on-off : Free set Multi-period time

Abnormal Voltage Protection : Provide detection for internal voltage. It’ll self-closing for protection once it deviates from the standard value range.

Intelligent temperature control system : Intelligent temperature control function can automatically control the working situation of cooling fan according to environment, to ensure that products can work in environment of high temperature.



POWER SUPPLY

Standby Power Consumption (w) : 2

Shutoff Power Consumption (w): 0.5

Intelligent Optical Sensor : With automatic function of light sensing. Self-regulation of screen brightness according to the light intensity of environment.

Outdoor Grade : IP 55

Max Power Consumption(w) : 290(43") /  450 (55")



PHYSICAL SPECIFICATIONS

Texture of Material : The outer of display is manufactured from galvanized steel sheets overlaid with low zinc powder and outdoor powder as surface treatment of protection, guaranteed 7 years no fade and no rust , the color of which can be customized.

Full Body Dimension(h x w x d  mm) : 1,850 x 699 x 160 (43")  /   2,100 X 850  X 160 (55")





        Product System Test             outdoor environmental design (high temperature, low temperature, rain and sun)  Before leave factory, products must be passed through aging test in 24 hours and waterproof & dust proof test.



Product System Test

 outdoor environmental design (high temperature, low temperature, rain and sun)

Before leave factory, products must be passed through aging test in 24 hours and waterproof & dust proof test.


      Environmental Control System Desig    n      Intelligent temperature control system    LCD operation temperature:-40℃  ~  +50℃



Environmental Control System Design

Intelligent temperature control system

LCD operation temperature:-40℃  ~  +50℃


          Optical System Design          LED backlight, Environmental Protection and Energy Saving    Auto Brightness Control



Optical System Design

LED backlight, Environmental Protection and Energy Saving

Auto Brightness Control


       Vividness     Uniformity    High Color Saturation        Advanced color management solutions of Keewin provide customers detailed options on color management. Users can adjust color by automatic or manual mode. Due to taking direct LED backlight, the uniformity of brightness 2500-5000 nits of screens can reach over 90%, and are more readable, colorful and accurate.



Vividness   Uniformity  High Color Saturation

Advanced color management solutions of Keewin provide customers detailed options on color management. Users can adjust color by automatic or manual mode. Due to taking direct LED backlight, the uniformity of brightness 2500-5000 nits of screens can reach over 90%, and are more readable, colorful and accurate.
