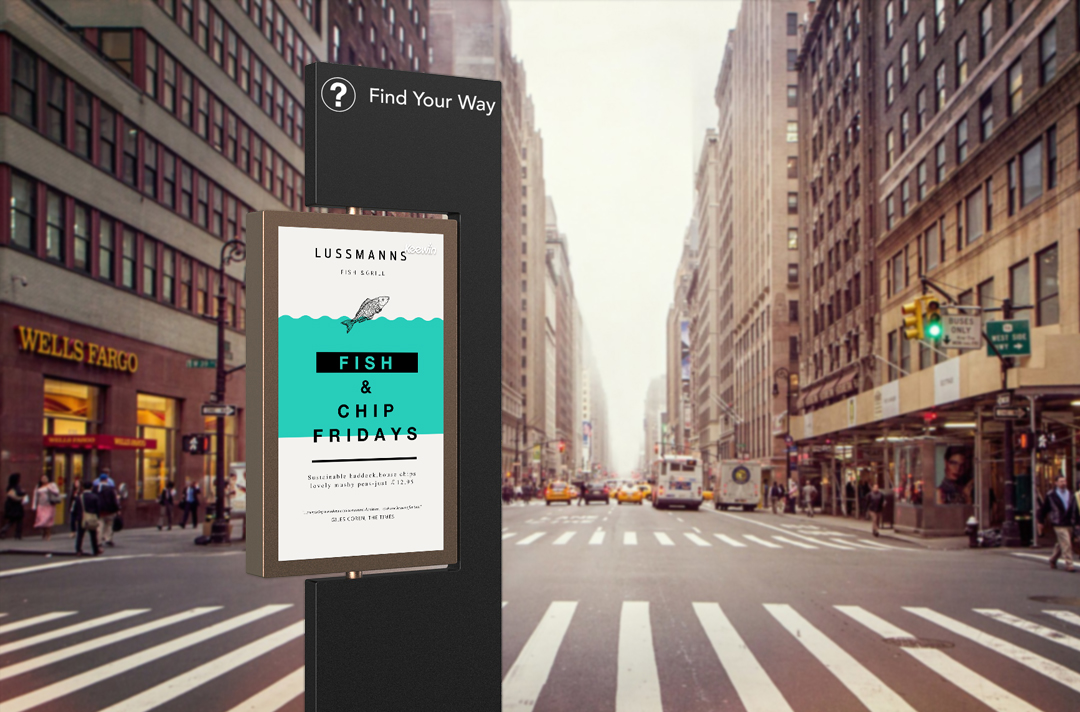

BE A "TRAVEL GUIDE" THROUGH INTERACTIVE WAYFINDING KIOSKS.

Deliver real-time location-based information,

Alleviate perceived wait times,

Enhance travel experiences,

Engage passengers with news, weather, emergency broadcasts, advertising.

2500 nits BRIGHTNESS.

12CM THICKNESS. 55" SCREEN.

iP68.

Available Sizes: 55"

Available Colors: Black, Brown


Wayfinding kiosks raises transportation IQ



        Digital Signage and kiosk technologies have created intelligent, interactive ways making smart travel even smarter.                            Wayfinding has evolved over the last couple of decades from static paper signage to electronic wayfinding to interactive wayfinding. This transition in large part has been the result of new technologies becoming available for airports, stations and terminals to leverage. The advent of digital signage also has led to significant improvements in wayfinding in facilities such as airports, where there are often multiple terminals and large volumes of people needed to be moved through the space quickly.

Digital Signage and kiosk technologies have created intelligent, interactive ways making smart travel even smarter.

            Wayfinding has evolved over the last couple of decades from static paper signage to electronic wayfinding to interactive wayfinding. This transition in large part has been the result of new technologies becoming available for airports, stations and terminals to leverage. The advent of digital signage also has led to significant improvements in wayfinding in facilities such as airports, where there are often multiple terminals and large volumes of people needed to be moved through the space quickly.





TECH SPECS

IP68 Wayfinding Kiosk

PANEL

Resolution : 1920 X 1080

Brightness(nits) : 2500

Contrast : 4000:1

Backlight : vertical led light source

Refresh Rate (ms): 6

Viewing angle  : 178° /  178°

Service Life (hours) : 50,000



FUNCTIONAL CHARACTERISTICS

Video Input : USB × 1 , SD × 1 , HDMI x 1

USB, SD Supports Video Formats : support extended .avi , mpg , dat, rm / rmbv , wmv

USB, SD Supports Audio Formats : support extended .mp3 wma ,m4a /aac

USB, SD supports Image Formats : support extend .jpg / jpeg , bmp , png

Audio Output (w) : 2 x 5

Timing on-off : Free set Multi-period time

Abnormal Voltage Protection : Provide detection for internal voltage. It’ll self-closing for protection once it deviates from the standard value range.

Intelligent temperature control system : Intelligent temperature control function can automatically control the working situation of cooling fan according to environment, to ensure that products can work in environment of high temperature.



POWER SUPPLY

Standby Power Consumption (w) : 2

Shutoff Power Consumption (w): 0.5

Intelligent Optical Sensor : With automatic function of light sensing. Self-regulation of screen brightness according to the light intensity of environment.

Outdoor Grade : IP 68

Max Power Consumption(w) : 420 (55")



PHYSICAL SPECIFICATIONS

Texture of Material : The outer of display is manufactured from galvanized steel sheets overlaid with low zinc powder and outdoor powder as surface treatment of protection, guaranteed 7 years no fade and no rust , the color of which can be customized.

Full Body Dimension(h x w x d  mm) : 2,615 x 1,080 x 120 (55")





        Product System Test             outdoor environmental design (high temperature, low temperature, rain and sun)  Before leaving the factory, products must be passed through aging test in 24 hours and waterproof & dust proof test.



Product System Test

 outdoor environmental design (high temperature, low temperature, rain and sun)

Before leaving the factory, products must be passed through aging test in 24 hours and waterproof & dust proof test.


      Environmental Control System Desig    n      Intelligent temperature control system    LCD operation temperature:-40℃  ~  +50℃



Environmental Control System Design

Intelligent temperature control system

LCD operation temperature:-40℃  ~  +50℃


          Optical System Design          LED backlight, Environmental Protection and Energy Saving    Auto Brightness Control



Optical System Design

LED backlight, Environmental Protection and Energy Saving

Auto Brightness Control


       Vividness     Uniformity    High Color Saturation        Advanced color management solutions of Keewin provide customers detailed options on color management. Users can adjust color by automatic or manual mode. Due to taking direct LED backlight, the uniformity of brightness 2500-5000 nits of screens can reach over 90%, and are more readable, colorful and accurate.



Vividness   Uniformity  High Color Saturation

Advanced color management solutions of Keewin provide customers detailed options on color management. Users can adjust color by automatic or manual mode. Due to taking direct LED backlight, the uniformity of brightness 2500-5000 nits of screens can reach over 90%, and are more readable, colorful and accurate.
