19inch Stretch Display

KW190

  • 19 Inch LCD Screen

  • Resolution:1920 x 360

  • Brightness: 300 Nits

  • BLU: E-LED

Inquiry to Buy
Download

Features

Maximize Limited Space with Ultra-Wide Digital Experiences

KEEWIN Bar Display is a professional stretched LCD signage solution designed for environments where conventional displays cannot fit.

With ultra-wide aspect ratios, slim industrial design, and multiple size options, KEEWIN Bar Displays transform narrow spaces into powerful digital communication platforms.

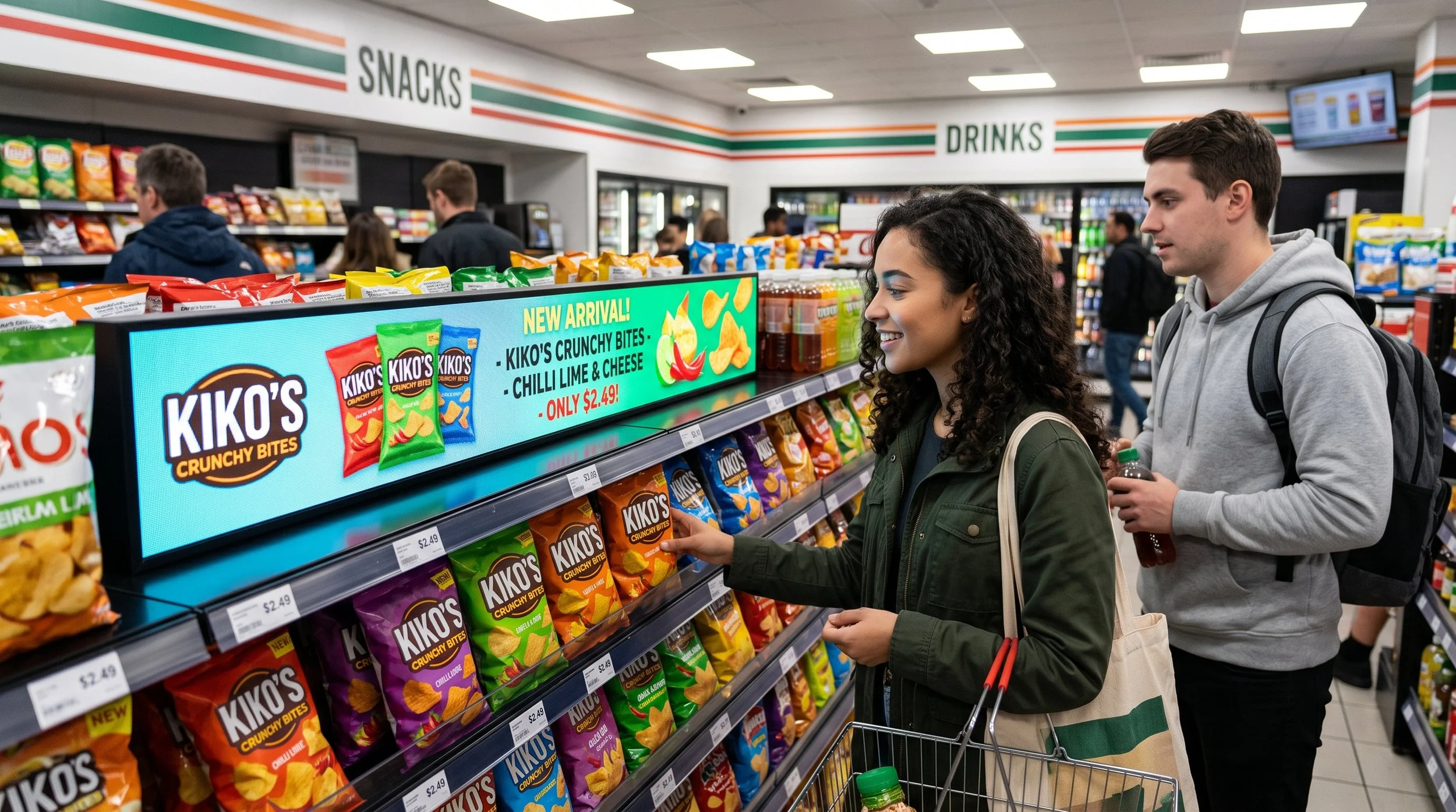

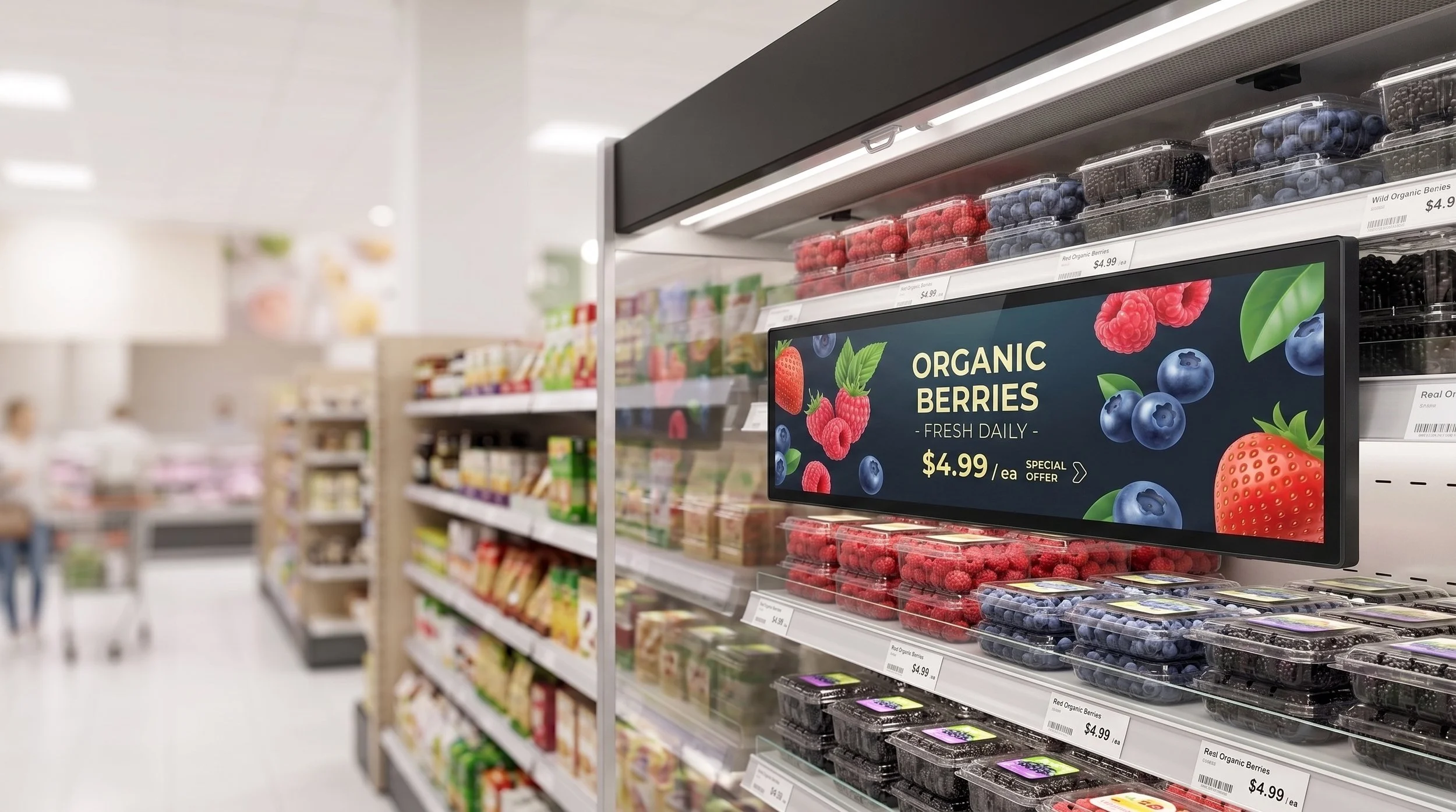

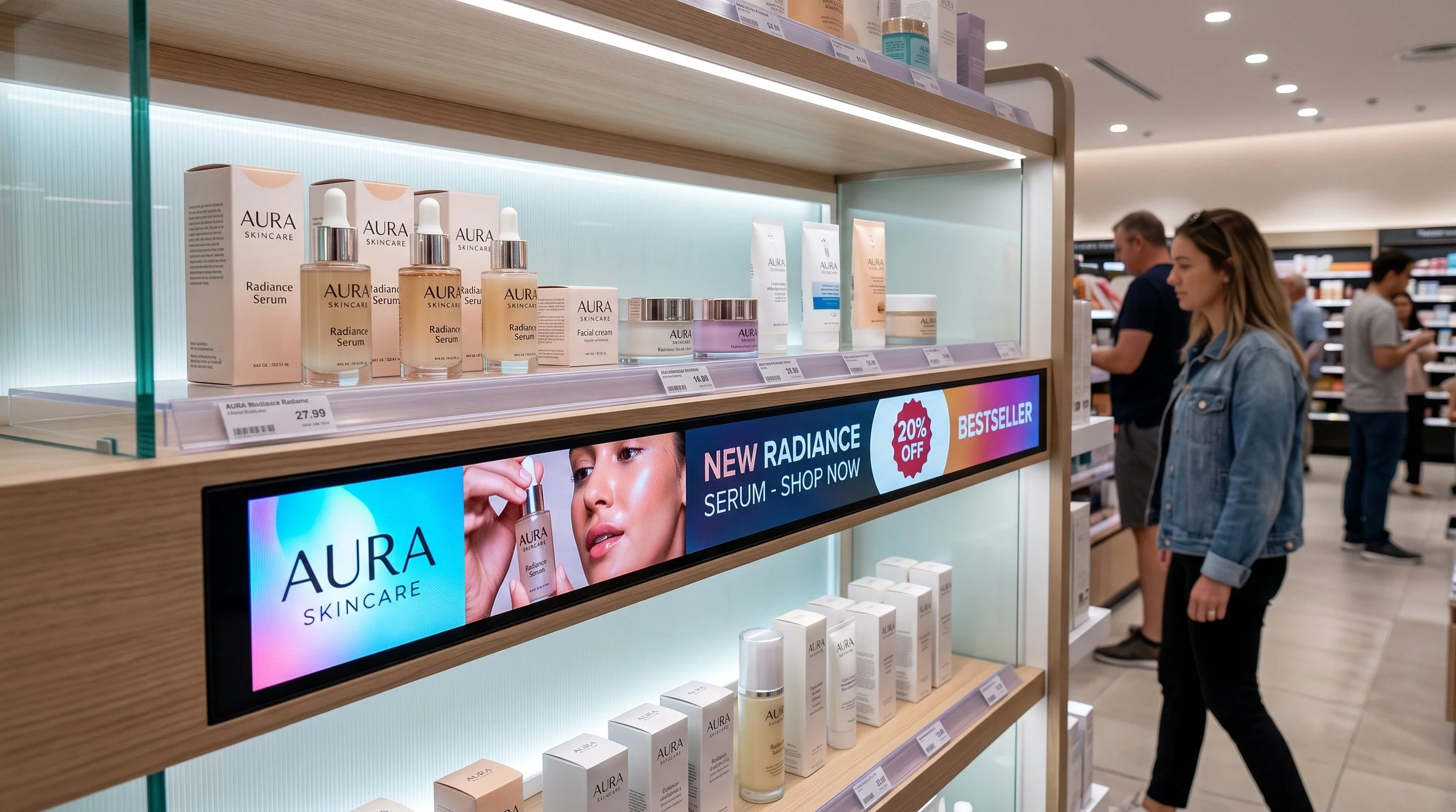

Perfect for retail shelves, transportation systems, smart cabinets, restaurants, elevators, and public information displays.

TECH SPECS

  • Model: DV190FBM-NB0

    LCD Tech: ADS

    Screen Size: 19 inch

    Resolution: 1920 × 360

    Brightness: 300nits

    BLU: E-LED

    Contrast Ratio: 1200:1

    Viewing Angle(H/V):178°/178°

    Backlight Life: 30,000 Hrs(Min.)

  • OS: Anroid 7.1

    CPU: Allwinner A40I, Quad-core ARM, Cortex-A7, 1.2GHz

    RAM: 1GB

    ROM: 8GB

    Network: Wi-Fi / LAN(RJ45) / BT4.0

    I/O Interface: USB OTG × 1 / USB Host × 1/ TF Card × 1 / RESET× 1 / LINE OUT× 1 / DC × 1

  • Power supply: DC 12V

    Power consumption: ≤ 16 W

  • Operation temperature:0℃~50℃

    Operation humidity: 20%~80% RH

  • Bezel: 7.85mm (L/R/T) /12.90mm (B)

    Body Dimension: 494.4 (W) × 112.4 (H) × 33.3 (D) mm

    Set Weight:1.95Kg

    Package Dimension (Pcs Inside): 700(W) × 365 (H) × 215 (D) mm

    Package Weight (Pcs Inside):10.6
