23.1 inch Shelf Edge Display

KW231

  • 23.1 Inch LCD Screen

  • Resolution:1920 x 158

  • Brightness: 500 Nits

  • Slim Design

  • Full Metal Shell

  • Brightness: 500 Nits

  • BLU: E-LED

Inquiry to Buy
Download

Features

Maximize Limited Space with Ultra-Wide Digital Experiences

KEEWIN Bar Display is a professional stretched LCD signage solution designed for environments where conventional displays cannot fit.

With ultra-wide aspect ratios, slim industrial design, and multiple size options, KEEWIN Bar Displays transform narrow spaces into powerful digital communication platforms.

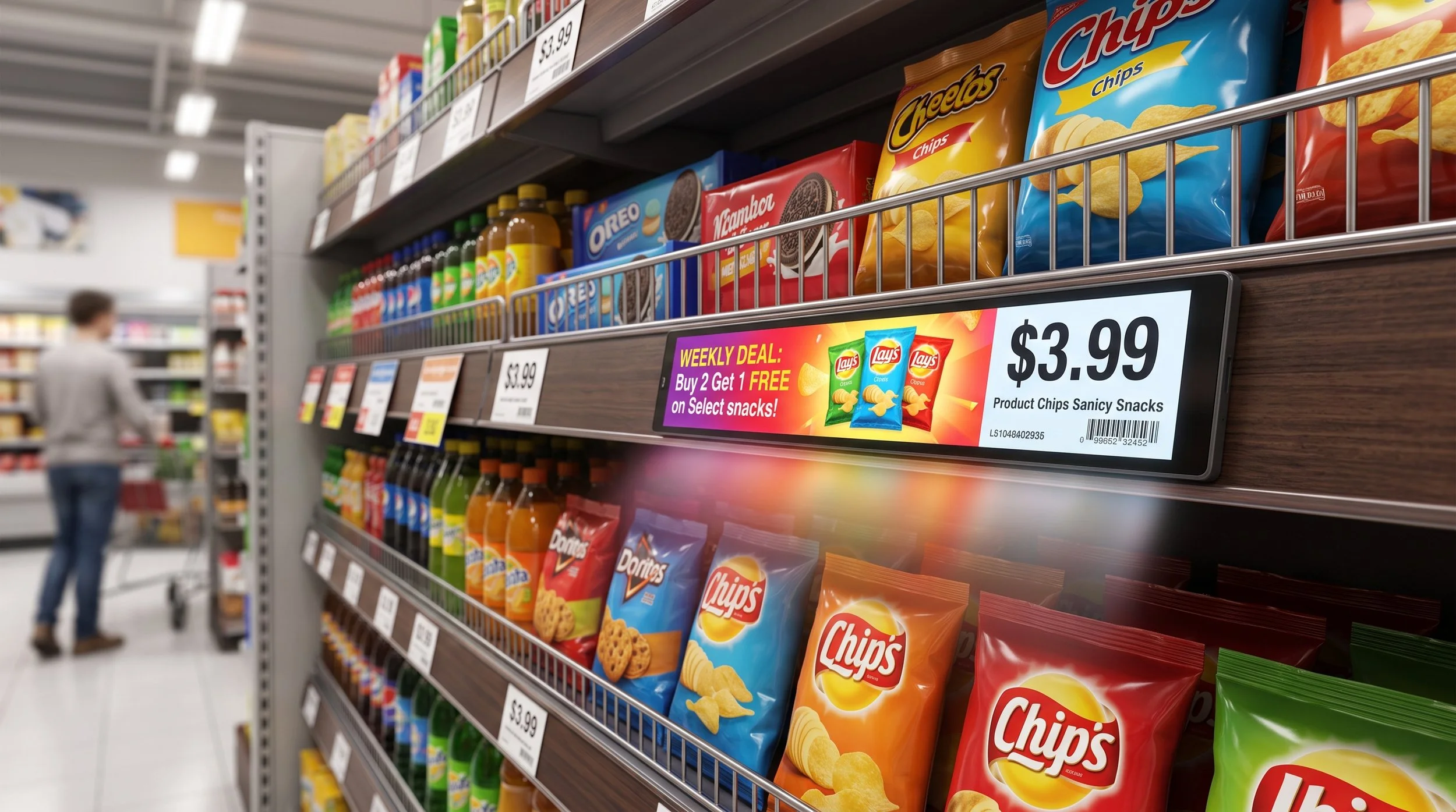

Perfect for retail shelves, transportation systems, smart cabinets, restaurants, elevators, and public information displays.

TECH SPECS

  • Model: S231AJ1-LE2

    LCD Tech: ADS

    Screen Size: 23.1 inch

    Resolution: 1920 × 158

    Brightness: 500nits

    BLU: E-LED

    Contrast Ratio: 3000:1

    Viewing Angle(H/V):178°/178°

    Backlight Life: 30,000 Hrs(Min.)

  • OS: Android 11

    CPU: RK3566 Quad-core CPU Cortex-A55 ,1.8GHz

    RAM: 2GB

    ROM: 16GB

    Network: WIFI 2.4G+5G/ BT5.0

    I/O Interface: Micro USB × 2 / TF Card× 1 /TYPE-C× 1/AUDIOX1

  • Power supply: DC 12V

    Power consumption: ≤ 20 W

  • Operation temperature:0℃~50℃

    Operation humidity: 20%~80% RH

  • Bezel: 5.2mm(U/D)/5.6mm(L/R)

    Body Dimension: 598.8(W) × 60.4 (H) × 15.8(D) mm

    Set Weight:0.85Kg

    Package Dimension (Pcs Inside): 680(W) × 320 (H) × 160 (D) mm

    Package Weight (Pcs Inside): 6.06kg
