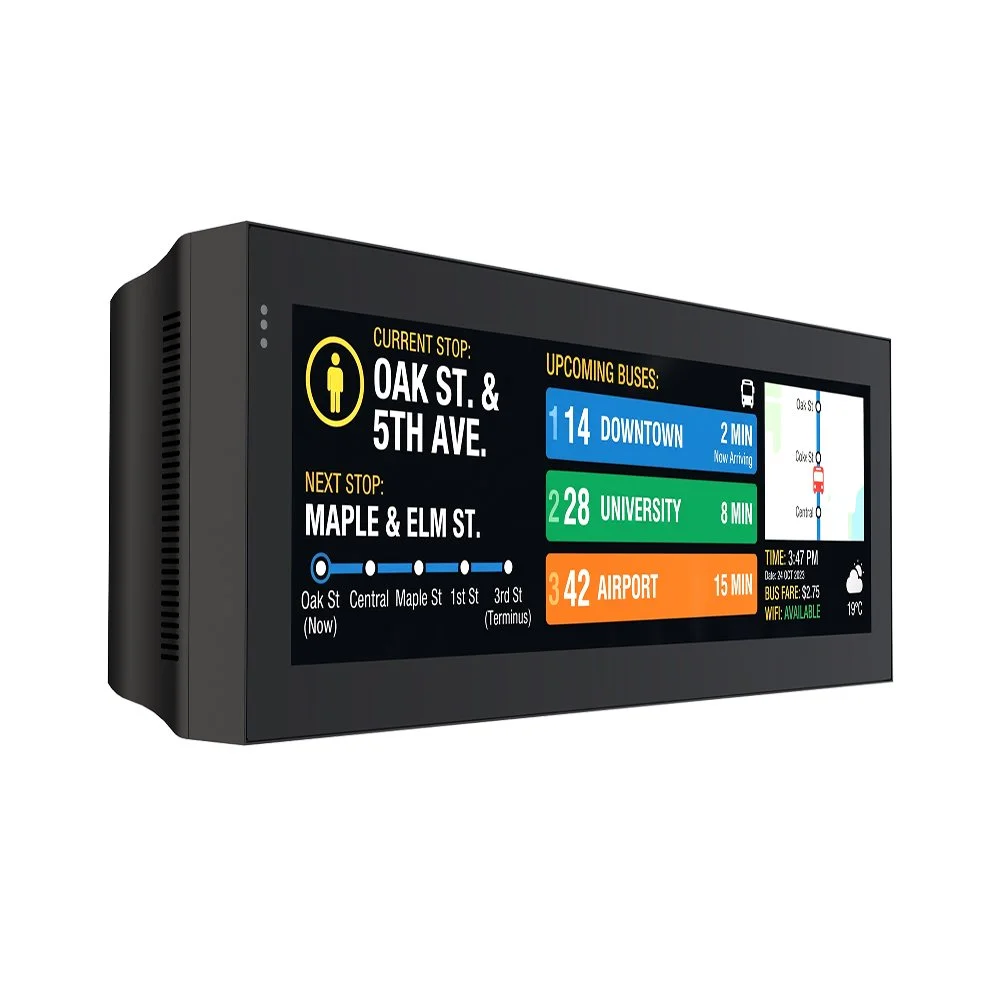

29 inch Stretched Outdoor Display

KWO29-66TRA

  • 29 Inch LCD Screen

  • Resolution: 1920 x 540

  • IP Rating: IP 66

  • Aspect Ratio: 32 : 9

  • Brightness: 1500 Nits

  • BLU: D-LED

Inquiry to Buy

Certifications: CE, Rohs, IP66, IK10, ATEX

Features

Outdoor Durability & Optical Performance.

  • IP66 All-Weather Sealed Protection: Full closed-loop enclosure prevents water, moisture, condensation, and fine dust ingress, ensuring 24/7 continuous operation in harsh outdoor and semi-outdoor environments.

  • IK10 Anti-Glare Optical Bonding: Features IK10 impact-resistant tempered glass bonded directly to the LCD panel via full optical bonding technology. Completely eliminates internal reflections, prevents solar blackout/polarization under direct sunlight, and guarantees sunlight-readable clarity.

  • Silent Passive Thermal Management: Engineered with hidden thermodynamic airflow channels for low-power, fanless heat dissipation, maintaining long-term reliability without noise pollution.

TECH SPECS

29" 1500 nits Outdoor Stretched Digital Signage

KWO29-66TRA M SERIES

LCD Display

Size29"
Active Display Area (H × V mm)698.4 × 196.4
Resolution1920 × 540
Brightness1500 nits
Aspect Ratio32 : 9
Backlight AdjustmentAutomatic (Ambient Light Sensor)
Viewing Angle178° / 178°
Backlight ConfigurationDirect LED
Operation Life (hours)50,000

Mechanical

Dimensions (W × H × D)775 × 280 × 185 mm
Net Weight25 kg
Enclosure MaterialAluminum (5052)
FinishingFine Grain Powder Coating
ColourBlack (Ral 9005)
GlassAR Coated Tempered Glass, Back Painted Pantone Black C

Power

Input Voltage100/240 VAC±10%, 50 to 60 Hz
Power Consumption50 W

Environment

IP RatingIP66
Operating EnvironmentFully Outdoor
Operating Temperature-30°C ~ 50°C
Operating Humidity5% ~ 100%

Media

Optional 1HDMI in × 1
Optional 2Android OS
Optional 3Windows OS

Product Features & Certifications

WeatherproofIP66 Rating Weatherproof
Outdoor VisibilitySunlight Readable (1500 nits)
Vandal ResistanceIK 10 Vandal Resistant
Sunglasses CompatibilityFriendly to sunglasses
CertificationsCE, RoHS, IP66, IK10, ATEX
All specifications and descriptions are subject to change without notice. Reproduction without permission is prohibited.
Product Documents
CAD Drawing
