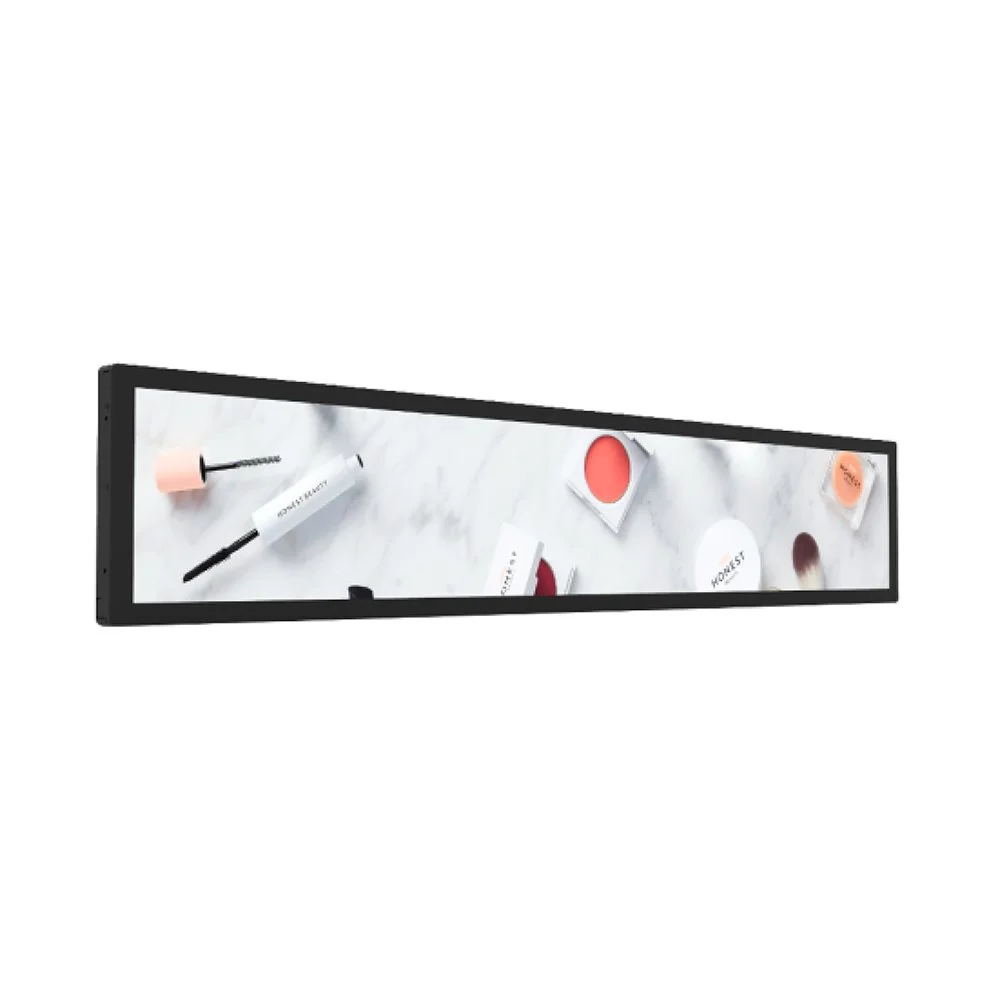

36.6 inch Stretch Display
KW366
36.6 Inch LCD Screen
Resolution:1920 x 290
Brightness: 700 Nits
BLU: E-LED
Features
Maximize Limited Space with Ultra-Wide Digital Experiences
KEEWIN Bar Display is a professional stretched LCD signage solution designed for environments where conventional displays cannot fit.
With ultra-wide aspect ratios, slim industrial design, and multiple size options, KEEWIN Bar Displays transform narrow spaces into powerful digital communication platforms.
Perfect for retail shelves, transportation systems, smart cabinets, restaurants, elevators, and public information displays.
TECH SPECS
36.6" 700nits Bar Display
KW366TXP02-V02
Display
| Model | DV366FBM-N10 |
| LCD Technology | ADS |
| Screen Size | 36.6 inch |
| Resolution | 1920 × 290 |
| Brightness | 700 nits |
| Backlight | E-LED |
| Contrast Ratio | 1200 : 1 |
| Viewing Angle (H/V) | 178° / 178° |
| Backlight Life | 30,000 Hrs (Min.) |
Internal Player
| Operating System | Android 7.1 |
| CPU | A40i, Cortex-A7 Quad-core, up to 1.2 GHz |
| RAM | 1 GB |
| ROM | 8 GB |
| Network | Wi-Fi / LAN / BT4.2 |
| I/O Interfaces | USB OTG ×1 / USB HOST ×1 / TF Card ×1 / Line out / DC IN |
Power
| Power Supply | DC 12V |
| Power Consumption | ≤ 45 W |
Environment
| Operating Temperature | 0 °C ~ 50 °C |
| Operating Humidity | 20 % ~ 80 % RH |
Physical
| Bezel | 16.65 mm (L/R) / 19.25 mm (T/B) |
| Body Dimension (W × H × D) | 961.4 × 175.75 × 35.6 mm |
| Set Weight | 5 kg |
| Package Dimension (4 pcs) | 1045 × 420 × 260 mm |
| Package Weight (4 pcs) | 23 kg |
