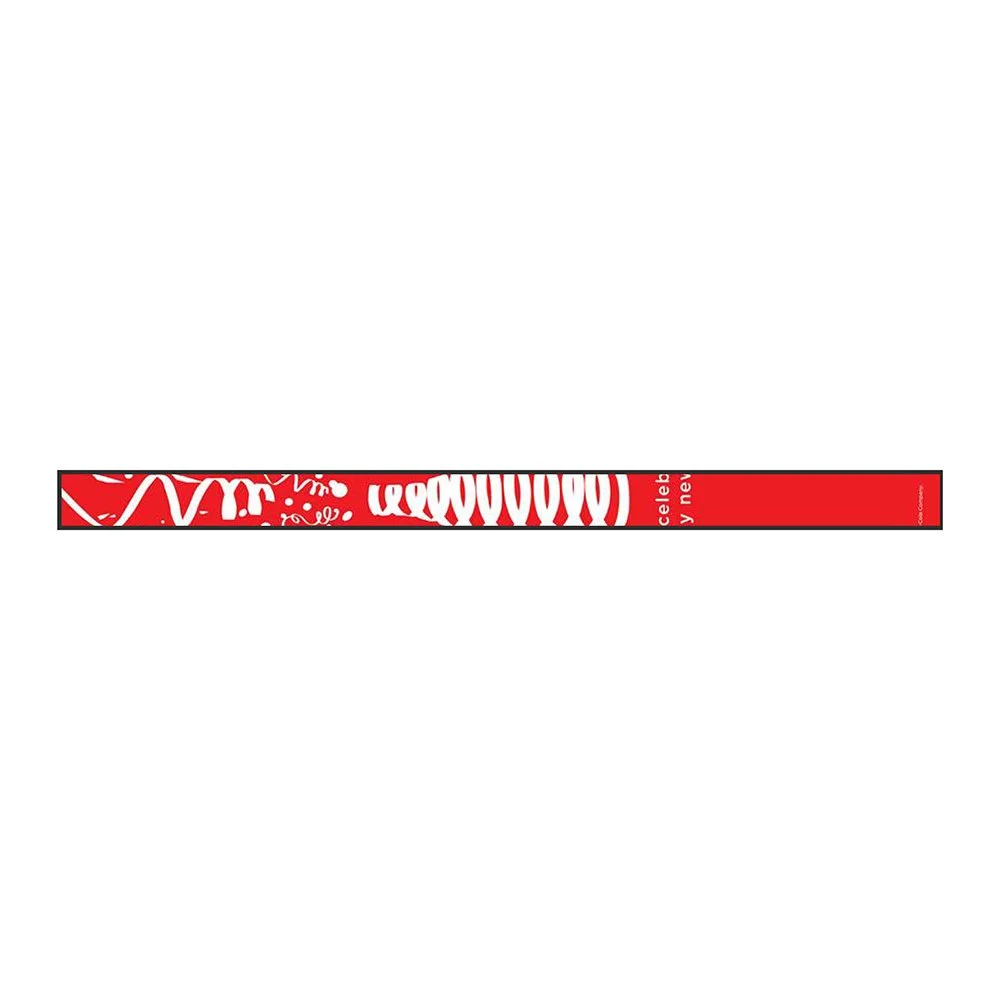

47.1 inch Shelf Edge Display
KW471
47.1 Inch LCD Screen
Resolution: 3840 x 160
Brightness: 500 Nits
Slim Design
Full Metal Shell
Brightness: 500 Nits
BLU: E-LED
Features
Maximize Limited Space with Ultra-Wide Digital Experiences
KEEWIN Bar Display is a professional stretched LCD signage solution designed for environments where conventional displays cannot fit.
With ultra-wide aspect ratios, slim industrial design, and multiple size options, KEEWIN Bar Displays transform narrow spaces into powerful digital communication platforms.
Perfect for retail shelves, transportation systems, smart cabinets, restaurants, elevators, and public information displays.
TECH SPECS
47.1" 500nits Android Bar Display
KW471TXP02-V02
Display
| Model | DV471FBM-N10 |
| LCD Technology | ADS |
| Screen Size | 47.1 inch |
| Resolution | 3840 × 160 |
| Brightness | 500 nits |
| Backlight | E-LED |
| Contrast Ratio | 1000 : 1 |
| Viewing Angle (H/V) | 178° / 178° |
| Backlight Life | 30,000 Hrs (Min.) |
Internal Player
| Operating System | Android 9.0 |
| CPU | T972, Quad-core ARM Cortex-A55 ×4, 1.9 GHz |
| RAM | 2 GB |
| ROM | 8 GB |
| Network | Wi-Fi / LAN / BT4.2 |
| I/O Interfaces | USB 2.0 ×1 / USB OTG ×1 / TF Card ×1 / RESET ×1 / DC_IN ×1 |
Power
| Power Supply | DC 12V |
| Power Consumption | ≤ 24 W |
Environment
| Operating Temperature | 0 °C ~ 50 °C |
| Operating Humidity | 20 % ~ 80 % RH |
Physical
| Bezel | 7.2 mm (L/R) / 8.4 mm (T/B) |
| Body Dimension (W × H × D) | 1211.6 × 67.5 × 24.3 mm |
| Set Weight | 2.72 kg |
| Package Dimension (5 pcs) | 1280 × 400 × 150 mm |
| Package Weight (5 pcs) | 16.5 kg |
