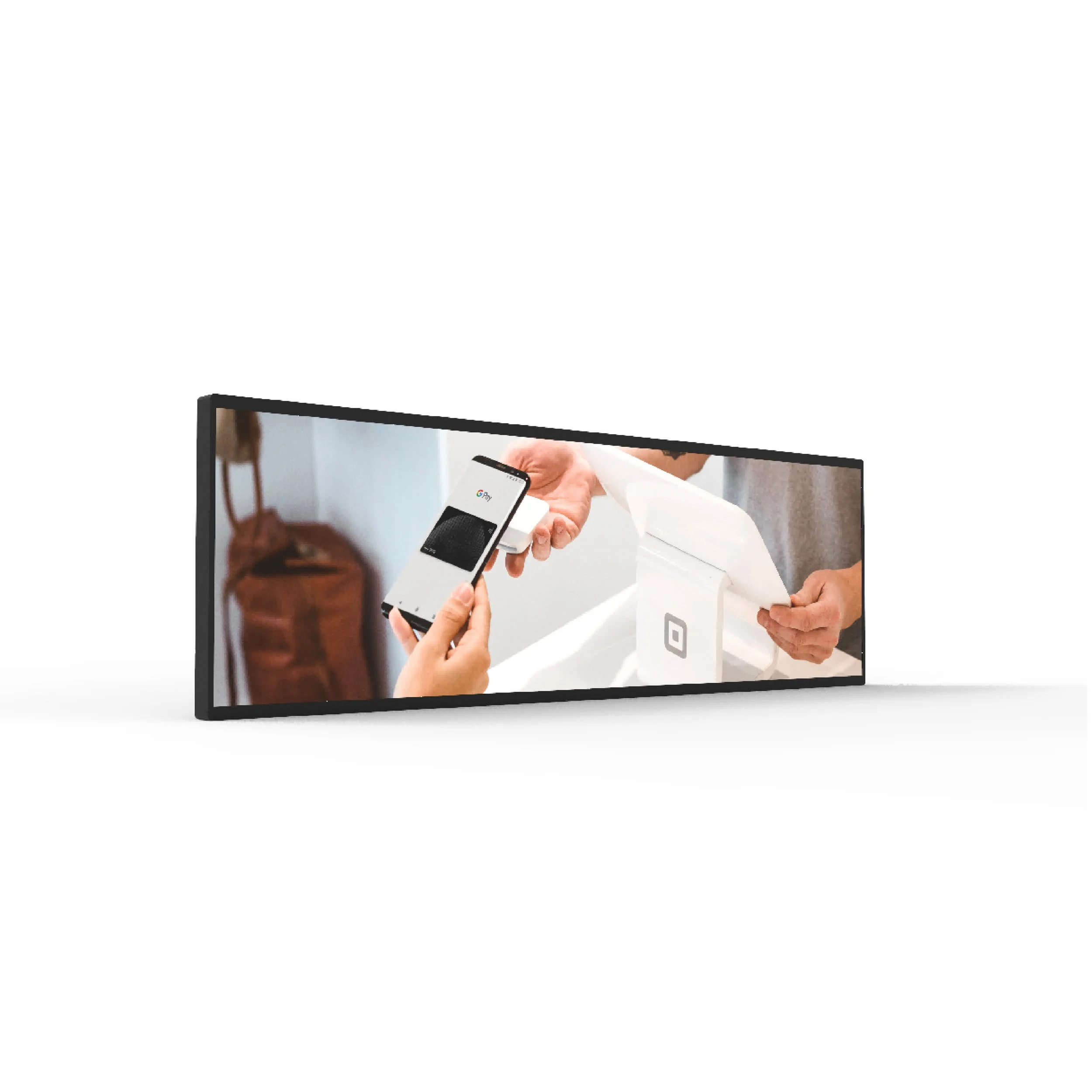

47.6 inch Stretch Display
KW476
47.6 Inch LCD Screen
Resolution:1920 x 360
Brightness: 700 Nits
BLU: E-LED
Features
Maximize Limited Space with Ultra-Wide Digital Experiences
KEEWIN Bar Display is a professional stretched LCD signage solution designed for environments where conventional displays cannot fit.
With ultra-wide aspect ratios, slim industrial design, and multiple size options, KEEWIN Bar Displays transform narrow spaces into powerful digital communication platforms.
Perfect for retail shelves, transportation systems, smart cabinets, restaurants, elevators, and public information displays.
TECH SPECS
47.6" 700nits Android Bar Display
KW476TXP01-V02
Display
| Model | DV476FKB-NV0 |
| LCD Technology | ADS |
| Screen Size | 47.6 inch |
| Resolution | 1920 × 360 |
| Brightness | 700 nits |
| Backlight | D-LED |
| Contrast Ratio | 1200 : 1 |
| Viewing Angle (H/V) | 178° / 178° |
| Backlight Life | 30,000 Hrs (Min.) |
Internal Player
| Operating System | Android 7.1 |
| CPU | A40i, Quad-core, up to 1.2 GHz |
| RAM | 1 GB |
| ROM | 8 GB |
| Network | LAN (RJ45) / Wi-Fi / BT4.0 |
| I/O Interfaces | HOST USB ×1 (Type A) / OTG USB ×1 (Type A) / Earphone ×1 / RJ45 ×1 / TF Card ×1 |
Power
| Power Supply | AC 100–240 V @ 50/60 Hz |
| Power Consumption | ≤ 80 W |
Environment
| Operating Temperature | 0 °C ~ 50 °C |
| Operating Humidity | 20 % ~ 80 % RH |
Physical
| Bezel | 3.8 mm (L/R/B) / 4.2 mm (T) |
| Body Dimension (W × H × D) | 1199.44 × 239.52 × 52.9 mm |
| Set Weight | 7 kg |
| Package Dimension (4 pcs) | 1300 × 360 × 350 mm |
| Package Weight (4 pcs) | 33 kg |
