55” Outdoor High Brightness Digital Signage Lite

KWO55-66 lite

  • 55 Inch FHD LCD Screen

  • Optical Bonding + AG Coating Tempered Glass

  • High Tni 105℃ Panel

  • High Brightness: 2500~4500 Nits

  • IP66-Fully Enclosed System

  • Maintenance Free

  • Android OS / Windows OS / TV Board


Features

There Are No Better Protected Displays Than Our IP 66 High Brightness Displays.
With An Entirely Enclosed Design, The IP 66 High Brightness Display Is The Answer
To Any Commercial Display  Need In A Non-Forgiving Environment.

Outdoor Digital Signage

High Brightness: 2500~4500 nits

(Truly Sunlight Readable)

IP66 (Fully Enclosed System)

35% Weight Reduction

55 inch outdoor digital signage lite is 35% lighter, only requires two men to complete the installation.

KWO55-66: 77KG, KWO55-66 LITE : 50KG

RESISTANT TO OUTDOOR ELEMENTS

The KWO-66 series is verified to perform in outdoor settings. IP66-rated protection ensures the KWO-66 series will withstand physical impact as well as dust, humidity or other outdoor elements that could affect the display.

HIGH VISIBILITY

The KWO-66 series captivate viewers with superior messaging clarity delivered with high 2,500 nit brightness and high contrast ratio.

TRULY SUNLIGHT READABLE

The KWO-66 series is optically bonded which increases the perceived contrast ratio and cuts down on glare, providing amazing picture quality, even in direct sunlight.

Maintenance Free

Outdoor digital signs use heat conduction as the heat dissipation mode, which is a more stable and safe way. Compared with fan cooling, the failure rate is reduced and no noise is generated. There is no filter replacement and maintenance free.

REFLECTION PREVENTION

Greater content visibility is achieved under a combination of high brightness, lower reflection. Ultra clear AG tempered glass of the KWO-66 Series that is in front of the displays' LCD panels removes the protection glass reflection, making the displayed images richer and clearer under direct sunlight.

Applications

It built as IP66 fully enclosed display module, and complete resistance to all the elements such as dust, wind, rain, moisture, etc.. It’s modular design supports up to three columns displays side-by-side, with an additional back-to-back option.

All in One Solutions

High Brightness LCD Screen

PC / Android / TV Board

DIY Outer Casing

Photo taken in Belgium

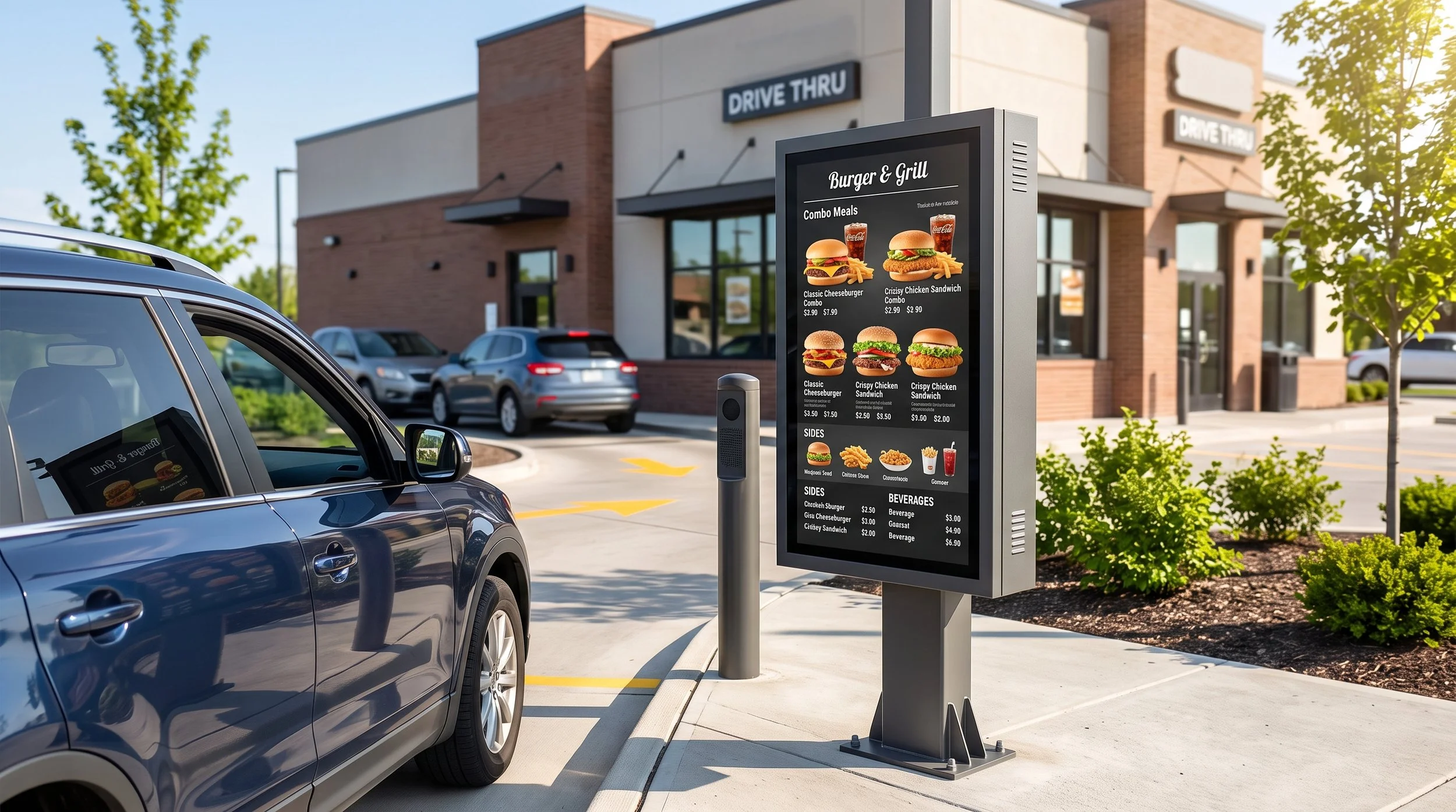

Digital Menu Board Kiosks

One Column

Two Columns

Three Columns


TECH SPECS

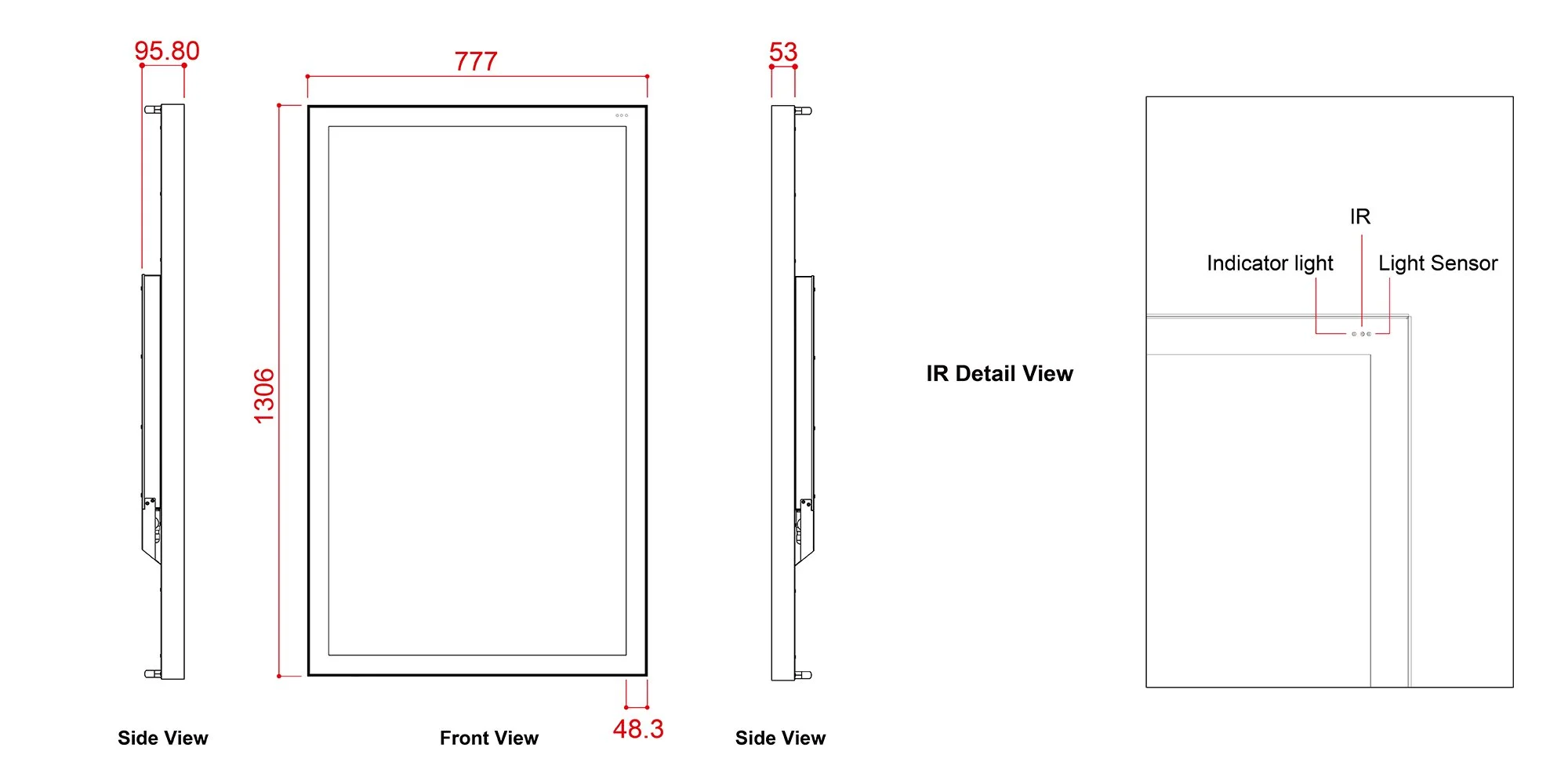

Outline Dimension

INSTALL DIMENSION
