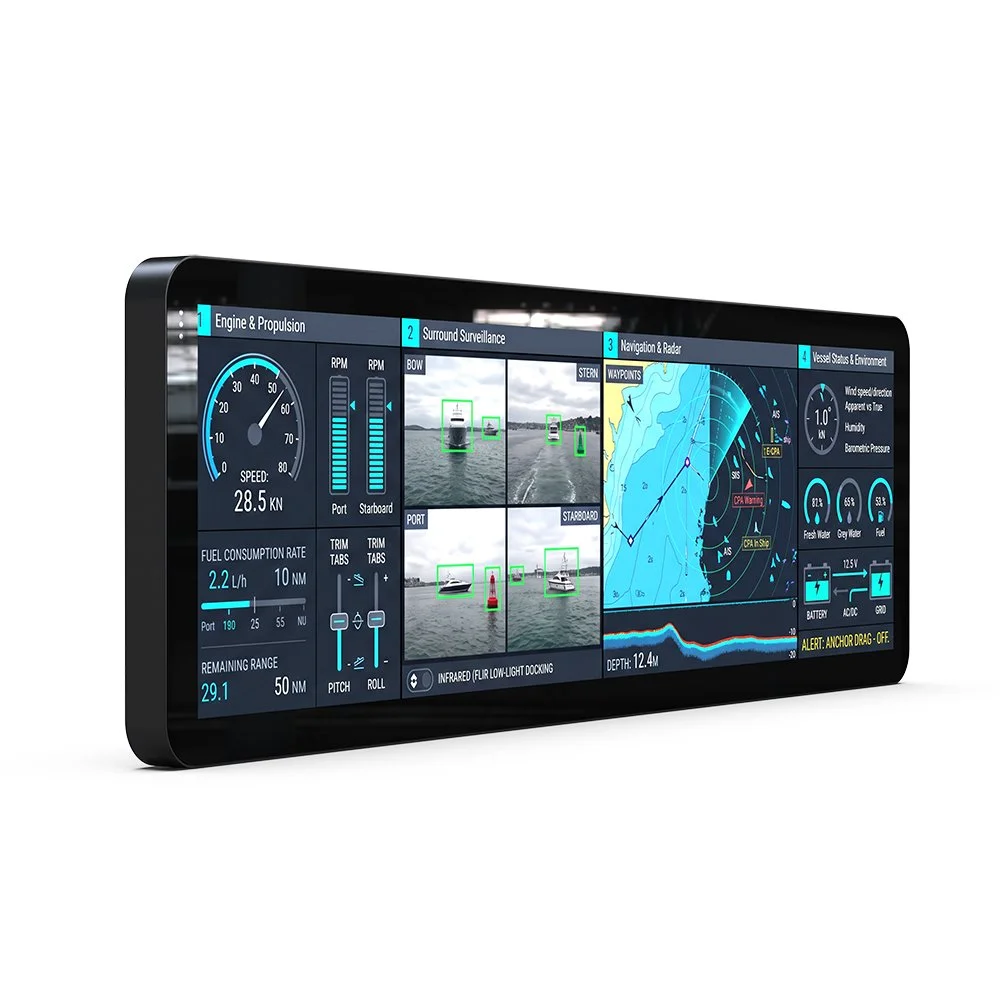

58.4 inch Stretched Outdoor Touch Display
KWO584
58.4 Inch LCD Screen
Resolution: 3840 x 1080
IP Rating: IP 68
Aspect Rati: 32 : 9
Brightness: 2500 Nits
BLU: D-LED
Certifications: CE,Rohs, IP66,IK10,ATEX
Features
Built to Be Seen. Designed to Engage.
2500-nit sunlight-readable brightness meets a 32:9 ultra-wide format, IP68 weather protection and 10-point PCAP touch — delivering a powerful interactive display solution for fully outdoor environments.
TECH SPECS
58.4" 2500 Nits Outdoor Stretch Digital Signage with Touch Function
Model: KWO58.4 M Series
Display
| Screen Size | 58.4 inches |
| Active Display Area (W × H) | 1428.48 × 401.76 mm |
| Resolution | 3840 × 1080 |
| Brightness | 2500 nits |
| Aspect Ratio | 32:9 |
| Backlight Adjustment | Automatic, via ambient-light sensor |
| Viewing Angle | 178° / 178° |
| Backlight Type | Direct LED |
| Operating Life | 50,000 hours |
Environmental
| IP Rating | IP68 |
| Installation Environment | Fully outdoor |
| Operating Temperature | -30°C to 50°C |
| Operating Humidity | 5% to 100% |
Power
| Input Voltage | 24 VAC |
| Power Consumption | TBD |
Mechanical
| Dimensions (W × H × D) | 1525 × 498 × 108 mm |
| Net Weight | TBD |
| Enclosure Material | 316L stainless steel + 5052 aluminum |
| Finish | Zinc powder coating + fine-grain powder coating |
| Color | Black, RAL 9005 |
| Protective Glass | AR-coated tempered glass, back-painted Pantone Black C |
| Mounting Holes | 4 × M10 × 25 |
Touch and Interfaces
| Touch Technology | 10-point PCAP touch |
| HDMI | 1 × HDMI |
| DisplayPort | 1 × DP |
| USB | 1 × USB |
| Ambient Light Sensor | Included |
Key Features
| Outdoor Visibility | 2500-nit, sunlight-readable display |
| Touch Function | 10-point PCAP touch |
| Weather Protection | IP68-rated enclosure |
| Vandal Resistance | IK10-rated protection |
| Sunlight Protection | Designed for use with polarized sunglasses |
All specifications and product descriptions are subject to change without notice.
