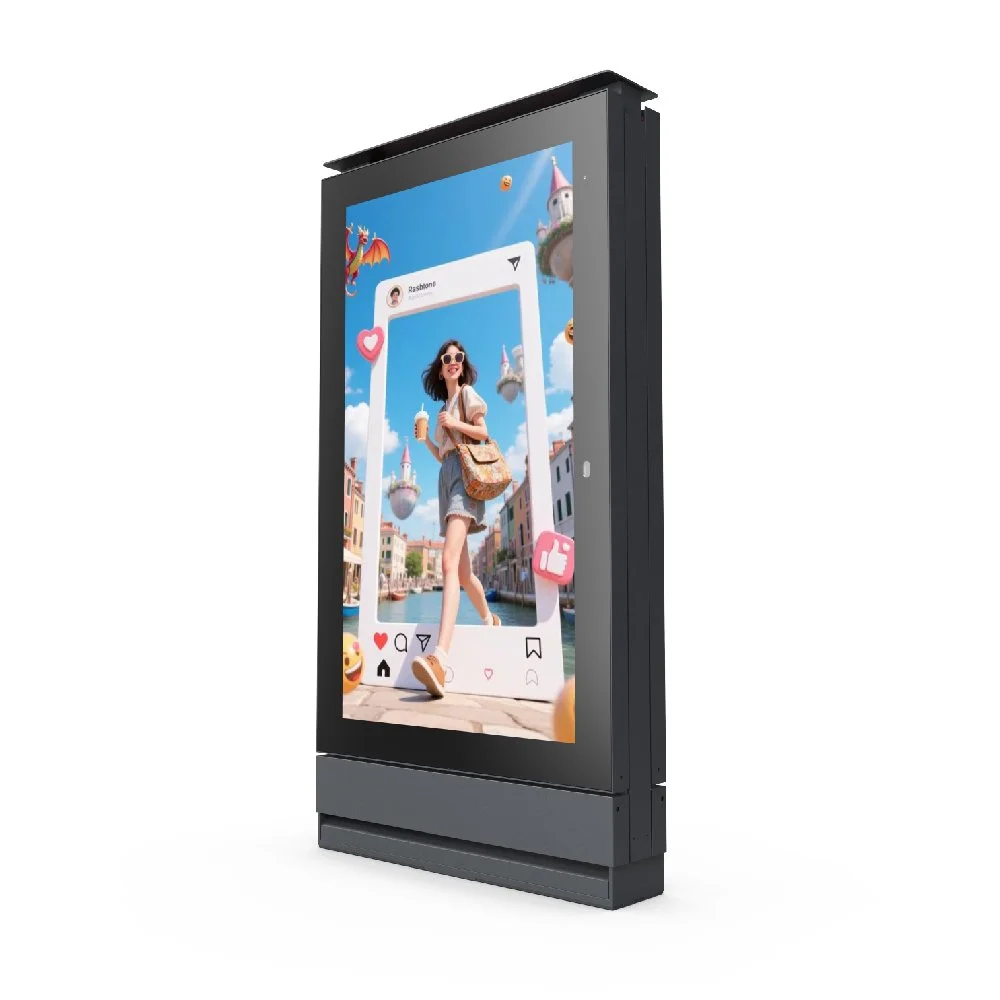

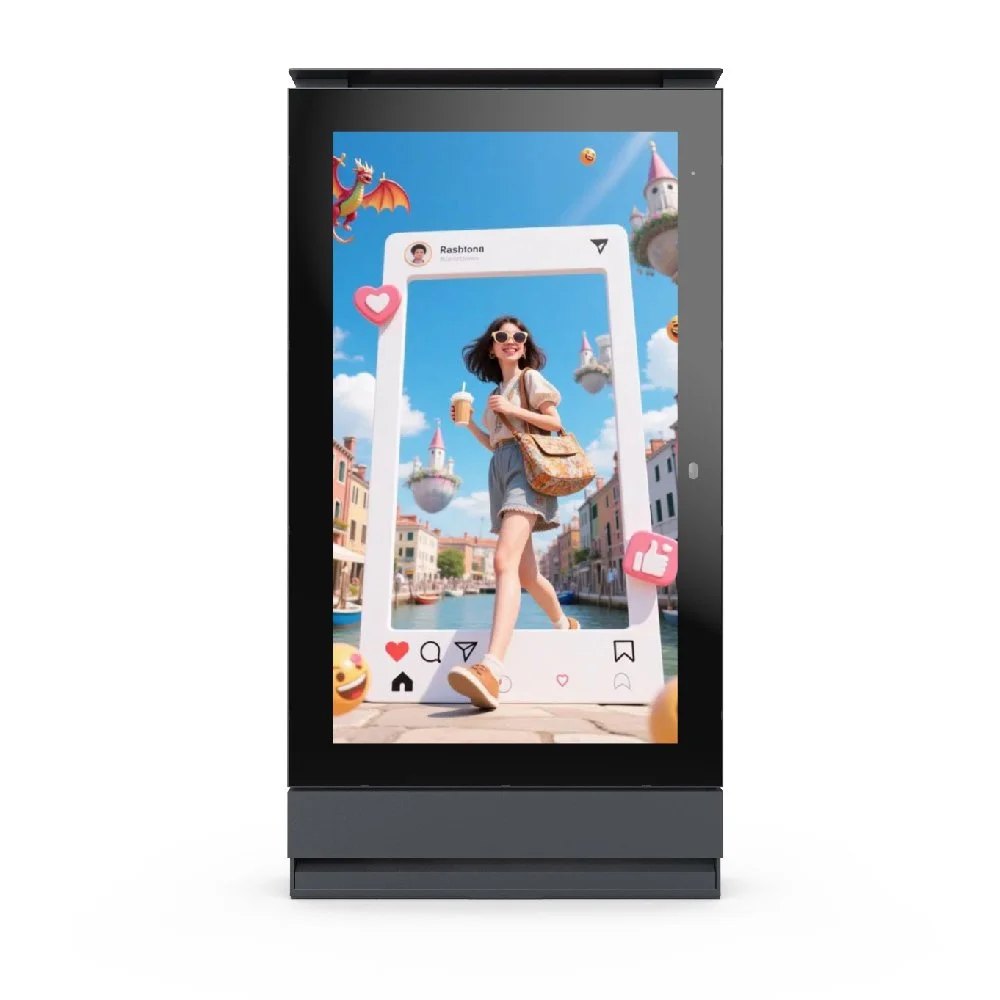

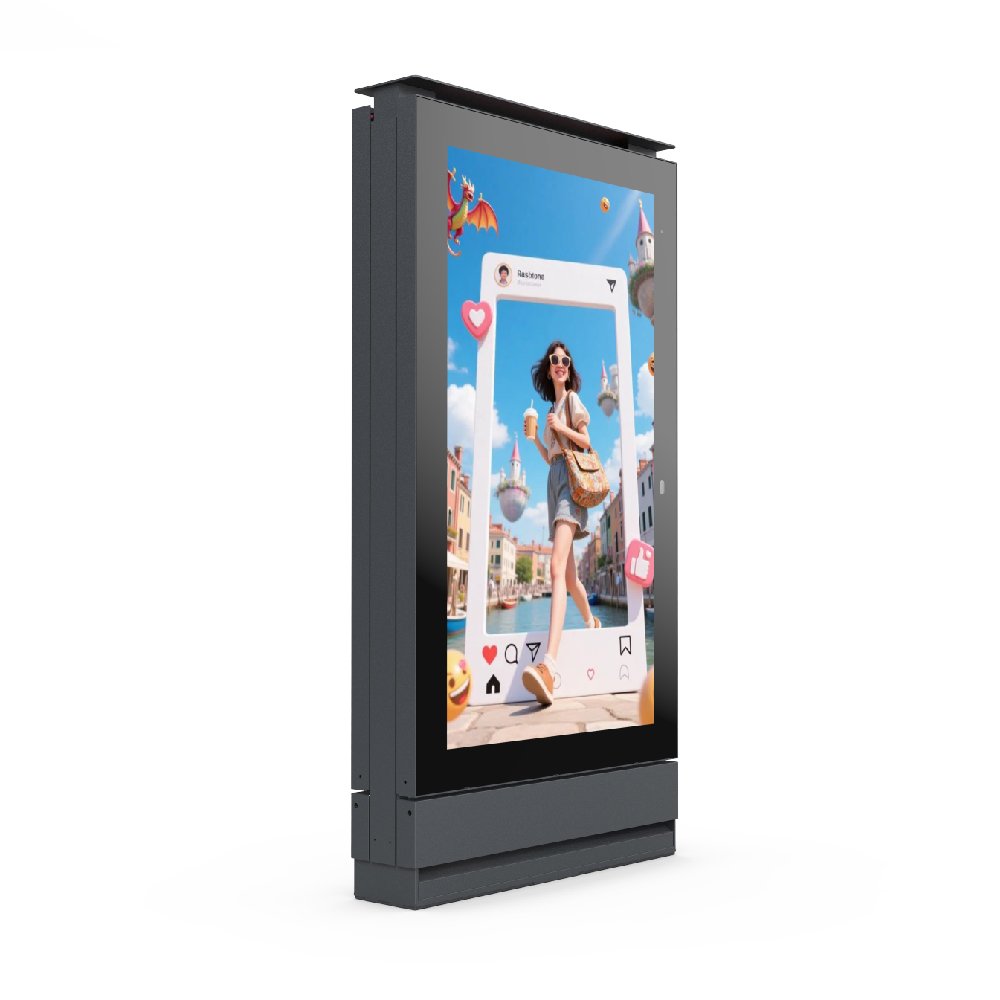

75 inch Outdoor Dual Sided Digital Advertising Kiosk

KWO75-HXDS

  • 75 Inch UHD LCD kiosk

  • AR coating tempered Glass

  • High Tni 105℃ Panel

  • High Brightness: 2500 / 4500Nits

  • IP66-Fully Enclosed System

  • IP66 Rating - Maintenance Free

  • Android OS / Windows OS / TV Board

Inquiry to Buy

Features

Keewin Outdoor LCD Kiosk with Heat Exchanger Cooling

Engineered for Reliable Outdoor Performance. Designed for Demanding Environments.

Keewin Outdoor LCD Kiosks combine high-brightness display technology, a sealed enclosure design, and advanced heat exchanger cooling to deliver reliable digital signage performance in challenging outdoor environments.

The heat exchanger cooling system transfers internal heat while keeping the display enclosure isolated from outside air, helping protect sensitive electronics from dust, moisture, and other environmental contaminants. This thermal management approach supports stable operation while maintaining the integrity of the sealed enclosure.

Designed for demanding commercial and public environments, Keewin outdoor LCD kiosks are suitable for applications including smart cities, transportation hubs, retail spaces, streetside advertising, and public information systems.

With flexible screen sizes, customizable configurations, and cooling solutions tailored to different climates and installation requirements, Keewin provides outdoor digital signage solutions engineered around real-world operating conditions.

Key Features

  • Heat Exchanger Cooling for Effective Thermal Management

  • Sealed Enclosure Design for Outdoor Protection

  • High-Brightness LCD for Daylight Visibility

  • Designed for Continuous Outdoor Operation

  • Multiple Screen Sizes and Custom Configurations

  • Flexible Solutions for Diverse Climate Conditions

Keewin — Outdoor Display Solutions Engineered for Real-World Environments.

TECH SPECS

75" 4000 nits 4K UHD Dual-Sided Outdoor Kiosk

W SERIES · 75 INCH DUAL-SIDED OUTDOOR LCD KIOSK

Display

Screen Size75 inch (CSOT OC)
Display ConfigurationDual-sided LCD display
Active Display Area (H × V)1650 × 928 mm
Resolution3840 × 2160 (4K UHD)
Brightness4000 nits
Aspect Ratio16 : 9
Viewing Angle178° / 178°
BacklightFull Array Local Dimming LED (384 zones)
Operation Life50,000 hours

Environment

IP RatingIP66
Operating EnvironmentFully Outdoor
Operating Temperature-30°C ~ 50°C
Operating Humidity5% ~ 98%
Operating Altitude≤ 2000 m

Power

AC Input110 VAC–220 VAC, 50 / 60 Hz
Maximum Power Consumption1200 W (with all fans running at high speed)
Lightning Protection GradeIII
Leakage Protection30 mA, 0.1 s

Mechanical

Dimensions (W × H × D)1176 × 2250 × 250 mm
Net WeightTBD
Enclosure MaterialGalvanized Steel + Aluminum
FinishingZinc Powder Coating + Fine Grain Powder Coating
ColourRAL 9006 (Light Grey), semi-gloss finish
Glass2-layer laminated AR tempered glass (4 + 4 mm), IK10, back-painted Pantone Black C

Media & Monitoring

HDMI InputHDMI × 2 (Aster Board)
Surveillance BoardIVY
Intelligent DimmingSupported
Intelligent CoolingSupported
AlarmsScreen display activity error alarm; door open alarm; fan error alarm; no working-voltage alarm; temperature error alarm; humidity error alarm

Product Features

Outdoor Visibility4000 nits sunlight-readable display
Display Design75-inch dual-sided outdoor LCD kiosk
Image Resolution4K UHD
Local DimmingFull Array Local Dimming (384 zones)
WeatherproofIP66
Vandal ResistanceIK10
Sunglasses CompatibilityFriendly to sunglasses
All specifications and descriptions are subject to change without notice.
Product Document
CAD Drawing
