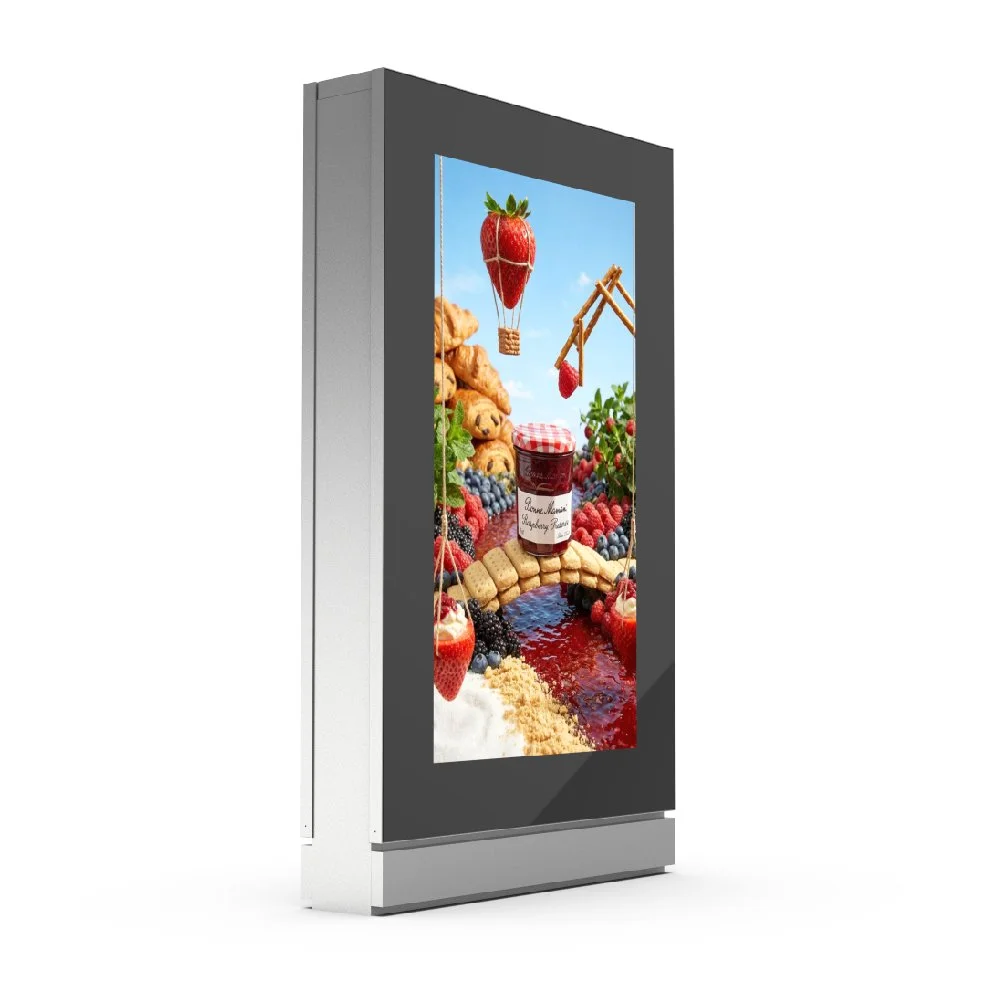

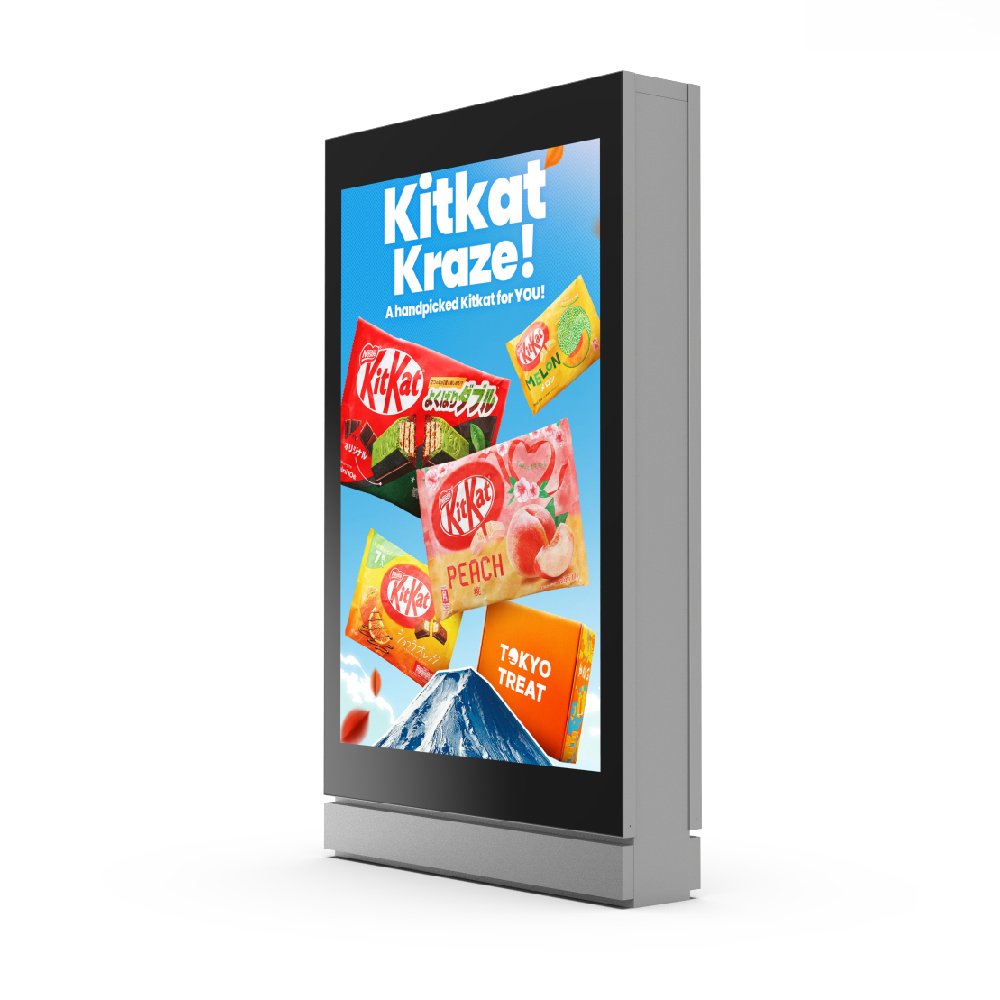

75 inch Outdoor Digital Advertising Kiosk
KWO75-HXDSL
75 Inch UHD LCD kiosk
AR coating tempered Glass
High Tni 105℃ Panel
High Brightness: 2500 / 3500Nits
IP66-Fully Enclosed System
IP66 Rating - Maintenance Free
Android OS / Windows OS / TV Board
Features
Keewin Outdoor LCD Kiosk with Heat Exchanger Cooling
Engineered for Reliable Outdoor Performance. Designed for Demanding Environments.
Keewin Outdoor LCD Kiosks combine high-brightness display technology, a sealed enclosure design, and advanced heat exchanger cooling to deliver reliable digital signage performance in challenging outdoor environments.
The heat exchanger cooling system transfers internal heat while keeping the display enclosure isolated from outside air, helping protect sensitive electronics from dust, moisture, and other environmental contaminants. This thermal management approach supports stable operation while maintaining the integrity of the sealed enclosure.

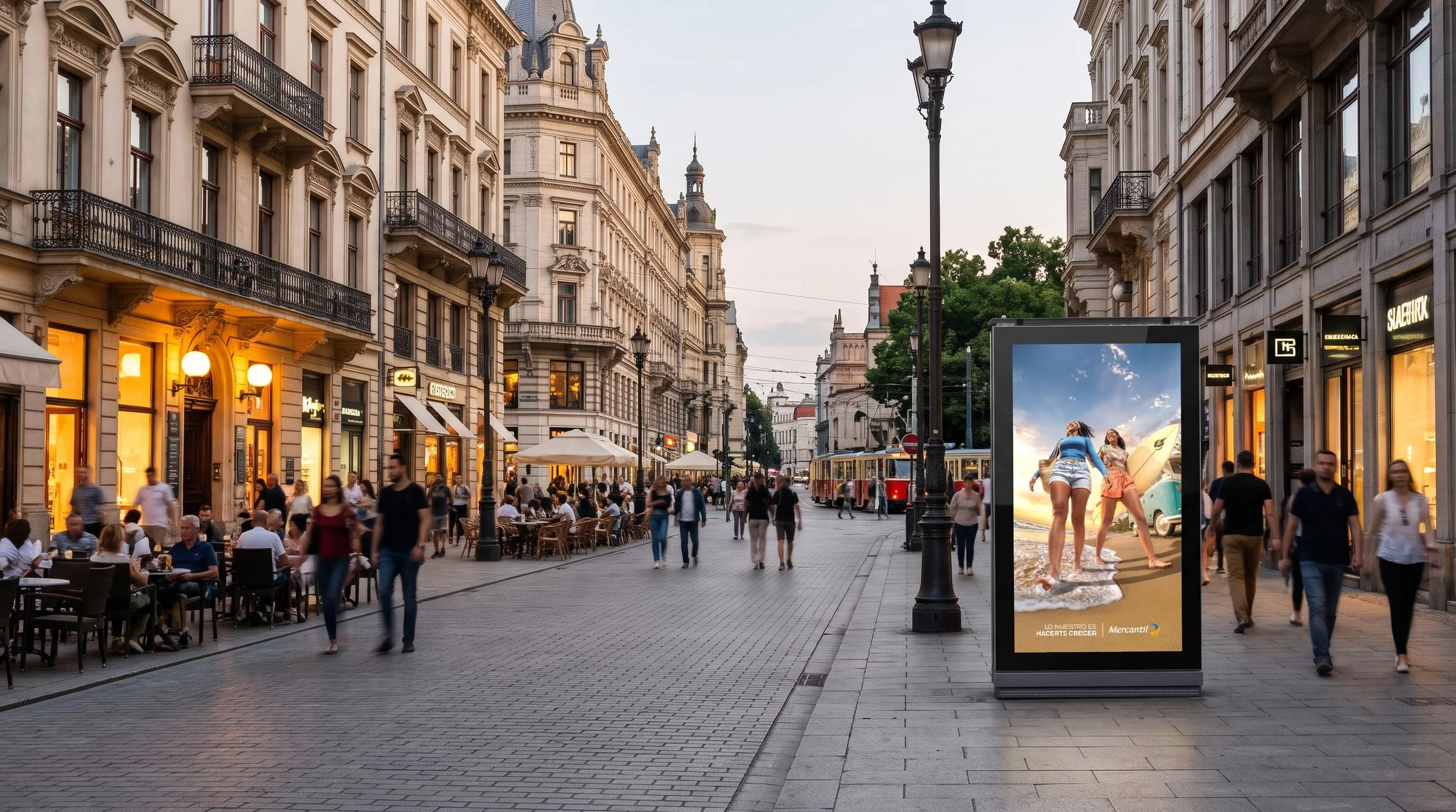

Designed for demanding commercial and public environments, Keewin outdoor LCD kiosks are suitable for applications including smart cities, transportation hubs, retail spaces, streetside advertising, and public information systems.
With flexible screen sizes, customizable configurations, and cooling solutions tailored to different climates and installation requirements, Keewin provides outdoor digital signage solutions engineered around real-world operating conditions.
Key Features
Heat Exchanger Cooling for Effective Thermal Management
Sealed Enclosure Design for Outdoor Protection
High-Brightness LCD for Daylight Visibility
Designed for Continuous Outdoor Operation
Multiple Screen Sizes and Custom Configurations
Flexible Solutions for Diverse Climate Conditions
Keewin — Outdoor Display Solutions Engineered for Real-World Environments.
TECH SPECS
75" 4000 nits 4K UHD Outdoor Kiosk with Light Box
Display
| Screen Size | 75 inch (CSOT OC) |
| Display Configuration | Single LCD display with light box poster panel |
| Active Display Area (H × V) | 1650 × 928 mm |
| Resolution | 3840 × 2160 (4K UHD) |
| Brightness | 4000 nits |
| Aspect Ratio | 16 : 9 |
| Viewing Angle | 178° / 178° |
| Backlight | Full Array Local Dimming LED (384 zones) |
| Operation Life | 50,000 hours |
Light Box
| Poster Size (W × H) | 1200 × 1750 mm |
| Kiosk Visual Opening (W × H) | 1160 × 1710 mm |
| Poster Panel | Light box poster side |
Environment
| IP Rating | IP66 |
| Operating Environment | Fully Outdoor |
| Operating Temperature | -30°C ~ 50°C |
| Operating Humidity | 5% ~ 98% |
| Operating Altitude | ≤ 2000 m |
Power
| AC Input | 110 VAC–220 VAC, 50 / 60 Hz |
| Maximum Power Consumption | 1200 W (with all fans running at high speed) |
| Lightning Protection Grade | III |
| Leakage Protection | 30 mA, 0.1 s |
Mechanical
| Dimensions (W × H × D) | 1338 × 2240 × 300 mm |
| Net Weight | 385 kg |
| Enclosure Material | Galvanized Steel + Aluminum |
| Finishing | Zinc Powder Coating + Fine Grain Powder Coating |
| Colour | RAL 9006 (Light Grey), semi-gloss finish |
| Glass (Digital Side) | 2-layer laminated AR tempered glass (4 + 4 mm), IK10, back-painted Pantone Black C |
| Glass (Poster Side) | Tempered glass, IK10, back-painted Pantone Black C |
Media & Monitoring
| HDMI Input | HDMI × 1 (Aster Board) |
| Surveillance Board | IVY |
| Intelligent Dimming | Screen display activity |
| Alarms | Error alarm; door open alarm; temperature error alarm; fan error alarm; humidity error alarm; no working-voltage alarm |
Product Features
| Outdoor Visibility | 4000 nits sunlight-readable display |
| Display Design | 75-inch outdoor LCD kiosk with light box poster panel |
| Image Resolution | 4K UHD |
| Local Dimming | Full Array Local Dimming (384 zones) |
| Weatherproof | IP66 |
| Vandal Resistance | IK10 |
| Sunglasses Compatibility | Friendly to sunglasses |
