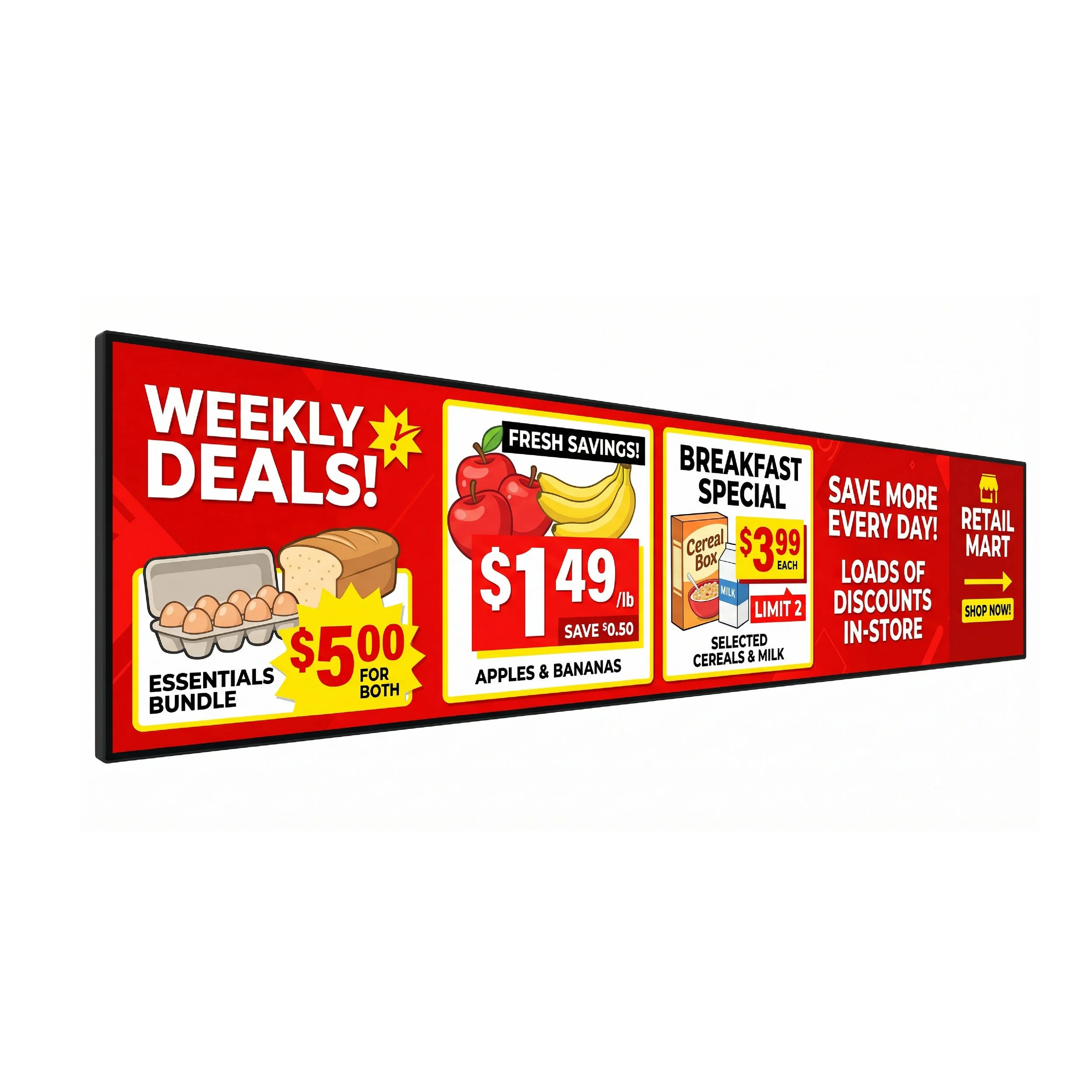

86 inch Stretch Display
KW86
86 Inch LCD Screen
Resolution: 3840 x 600
Aspect Ratio:32 : 5
Contrast Ratio:1200 : 1
Brightness: 1000 Nits
BLU: E-LED
Features
Maximize Limited Space with Ultra-Wide Digital Experiences
KEEWIN Bar Display is a professional stretched LCD signage solution designed for environments where conventional displays cannot fit.
With ultra-wide aspect ratios, slim industrial design, and multiple size options, KEEWIN Bar Displays transform narrow spaces into powerful digital communication platforms.
Perfect for retail shelves, transportation systems, smart cabinets, restaurants, elevators, and public information displays.
TECH SPECS
86.0" 1000nits Android Display
KW860A01 / CN86A01_HD3568V
Display
| Model | DV860FBM-N10 |
| LCD Technology | ADS |
| Resolution | 3840 × 600 |
| Brightness | 1000 nits |
| Display Colors | 1.07G (8bits + FRC) |
| Response Time | 13 ms |
| Aspect Ratio / BLU | 32 : 5 |
| Contrast Ratio | 1200 : 1 |
| Viewing Angle (H/V) | 178° / 178° |
| Backlight Life | 50,000 Hrs (Min.) |
| Surface Treatment | AG25 / Clear (CF / TFT POL) |
| Backlight | ELED |
Internal Player
| Mainboard | HD3568V |
| Operating System | Android 13.0 |
| CPU | RK3588 4×Cortex-A76 + 4×Cortex-A55, up to 2.4 GHz |
| RAM | 4 GB |
| ROM | 64 GB |
| Network | 1000 Mbps Ethernet / 2.4GHz & 5GHz Wi-Fi / Wi-Fi 6 / Bluetooth 5.0 |
| I/O Interfaces | USB 3.0 ×1 / USB OTG ×1 / TF/SIM Card ×1 / RJ45 ×1 / AUDIO OUT ×1 / HDMI IN ×1 |
Power
| Power Supply | AC 100–240 V @ 50/60 Hz |
| Power Consumption | ≤ 260 W |
Environment
| Operating Temperature | 0 ~ +50 °C |
| Operating Humidity | 10 ~ 80 % RH |
| Storage Temperature | -20 ~ +60 °C |
| Storage Humidity | 10 ~ 80 % RH |
Physical
| Bezel | 12.0 mm (T/B/L/R) |
| Body Dimension (W × H × D) | 2174.0 × 362.0 × 29.4 / 43.19 mm |
| Set Weight | TBD |
| Package Dimension (1 pc) | 2290 × 170 × 480 mm |
| Package Weight (1 pc) | TBD |
| VESA Mounting | 600 × 200 mm (≤4× M8×30 mm) |
