OUR MOST VERSATILE UNIT.

Android System, Wifi

2500 nits Brightness,

16 cM Thickness,

IP Rating: IP 55.


  • Available Sizes: 43, 55, 65
  • Available Colors:  Black(Ral 9005), Dark Gary (Ral 7043)

Keewin Outdoor Features

Keewin Display Fully Outdoor High Brightness LCD Displays

Durable Clean Cut Design

Due to our advancements in cooling technology, we are able to develop super thin
displays. Our displays also have an anti-corrosion protective layer that will last more
than seven to ten years.



1 . Excellent visual quality : 2500 nits, high contrast , wide viewing angle

2 . Guaranteed performance: 5000 hours

3 . Outdoor grade : IP55 design , Exposure to direct sunlight, rain, snow and dust




Product Features

1 . Long lasting brightness
Thanks to the high-efficiency LED back light panel uses on KWO series products, 24 x 7 is easily to be achieved; besides, the monitor is also excellently viewable from even very large angle and strong sunlight, you can always feel the great contrast ratio and colour saturation that the screen brought you.

2 . Fully outdoor protection
KWO series products can be used totally outdoor, no matter how extreme the weather changes, the strong metal casing & tempered glass covered kiosks will always keep your information advertising.

3 . Temperature & humidity control
Embedded heater, fans & sensors are working together to keep the whole unit operates in well condition, continuously advertising in anywhere of the world.

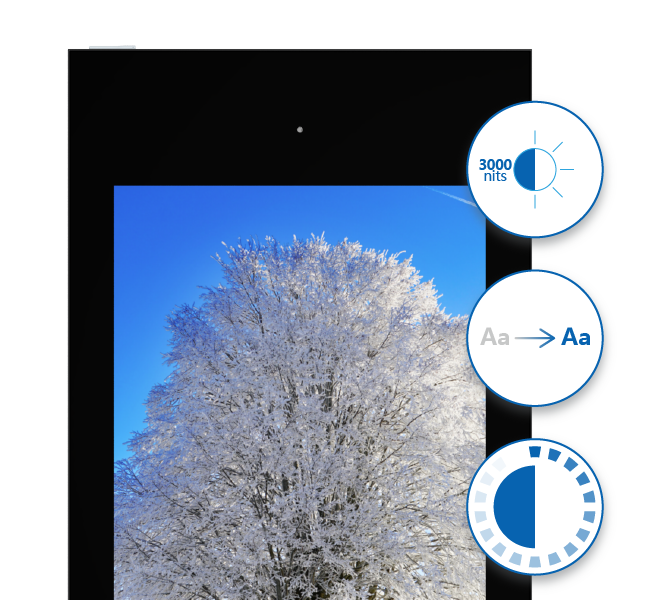

4 . Automatic brightness control
The brightness is automatically adjusted according to various sunlight environments, night mode(lowest brightness) will be activated in the night, the highest brightness will be turned on during the noon with strong sunlight.





Keewin Display LCD Display.jpg

Narrow Bezel , 85mm






94% Transmission rate



TECH SPECS

OUTDOOR AIR COOLED KIOSK

Display Size ( inch ) : 43 / 55 / 65

Active Display Area ( mm ) : 529 x 941 / 680 x 1210 / 800 x 1425

Resolution : 1920 x 1080

Aspect Ratio : 16: 9

Brightness ( nits ) : 2500

Contrast Ratio : 4000: 1

Power Consumption ( w ) :  250 / 450 / 580 (without heater), 650 / 850 / 980 (with heater)

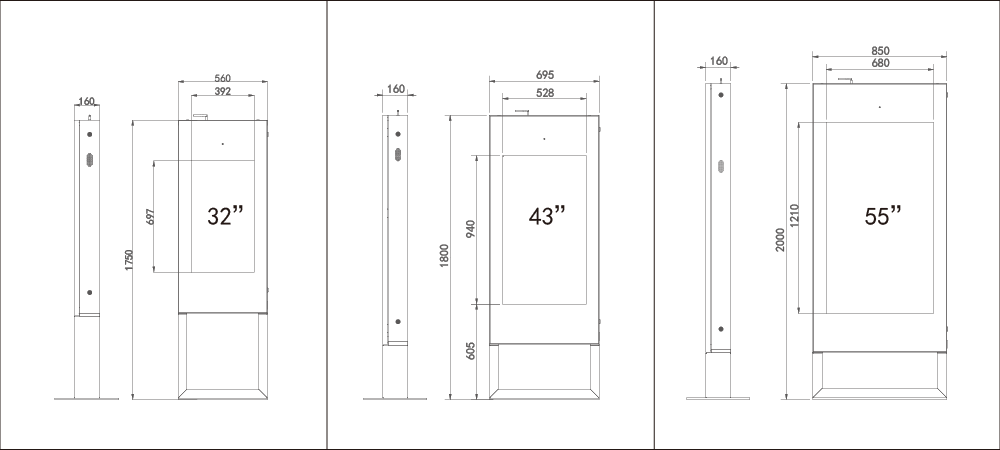

Dimensions ( W x H x D, mm ) : 700 x 1,850 x 160 / 850 x 2,000 x 160 / 970 x 2,100 x 160



FEATURES

        Product System Test             outdoor environmental design (high temperature, low temperature, rain and sun)  Before leave factory, products must be passed through aging test in 24 hours and waterproof & dust proof test.



Product System Test

 outdoor environmental design (high temperature, low temperature, rain and sun)

Before leave factory, products must be passed through aging test in 24 hours and waterproof & dust proof test.


      Environmental Control System Desig    n      Intelligent temperature control system    LCD operation temperature:-40℃  ~  +50℃



Environmental Control System Design

Intelligent temperature control system

LCD operation temperature:-40℃  ~  +50℃


          Optical System Design          LED backlight, Environmental Protection and Energy Saving    Auto Brightness Control



Optical System Design

LED backlight, Environmental Protection and Energy Saving

Auto Brightness Control


       Vividness     Uniformity    High Color Saturation        Advanced color management solutions of Keewin provide customers detailed options on color management. Users can adjust color by automatic or manual mode. Due to taking direct LED backlight, the uniformity of brightness 2500-5000 nits of screens can reach over 90%, and are more readable, colorful and accurate.



Vividness   Uniformity  High Color Saturation

Advanced color management solutions of Keewin provide customers detailed options on color management. Users can adjust color by automatic or manual mode. Due to taking direct LED backlight, the uniformity of brightness 2500-5000 nits of screens can reach over 90%, and are more readable, colorful and accurate.


SURVEILLANCE APPLICATION

KEEWIN SURVEILLANCE APPLICATION.jpg
